Regular price $4,980.00 Sale price$4,731.00 Save 5%
/

Color
Size

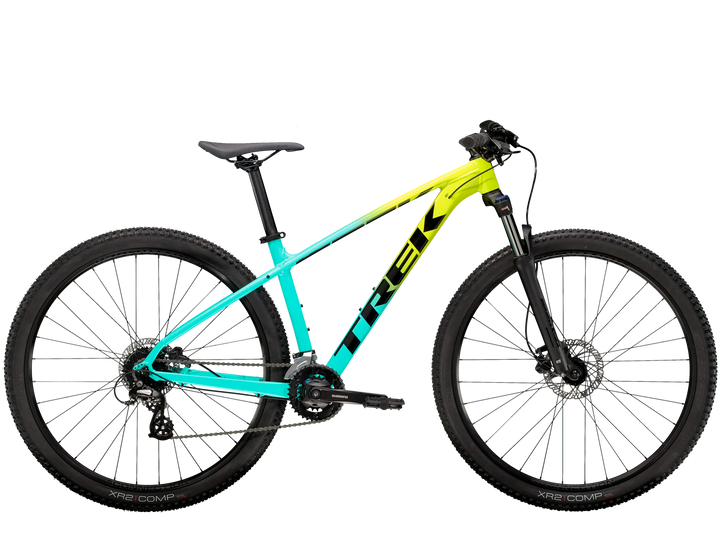

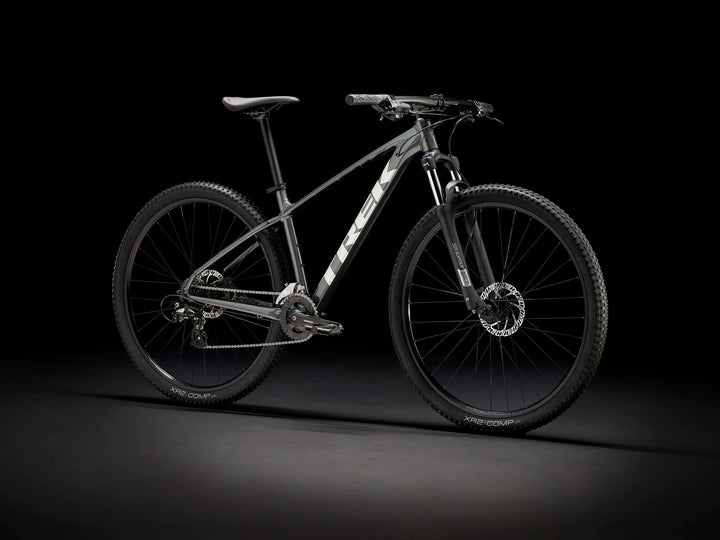

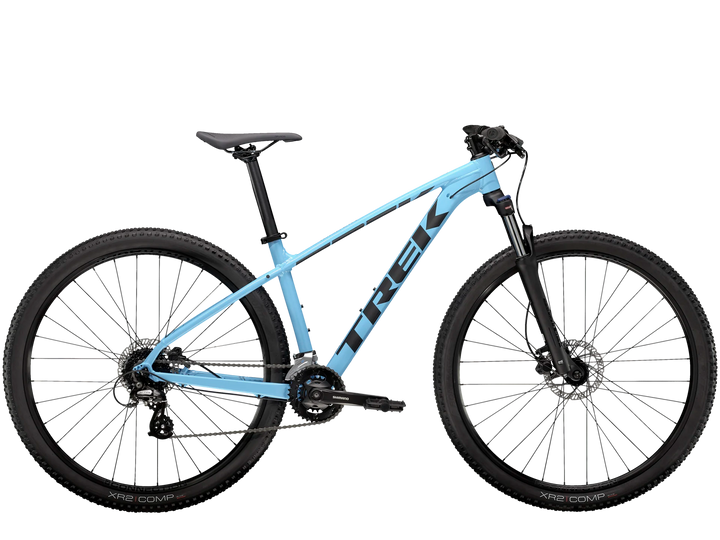

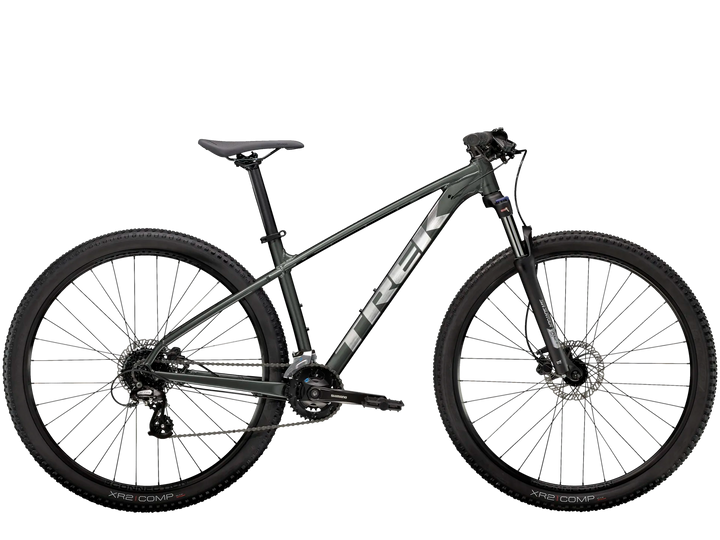

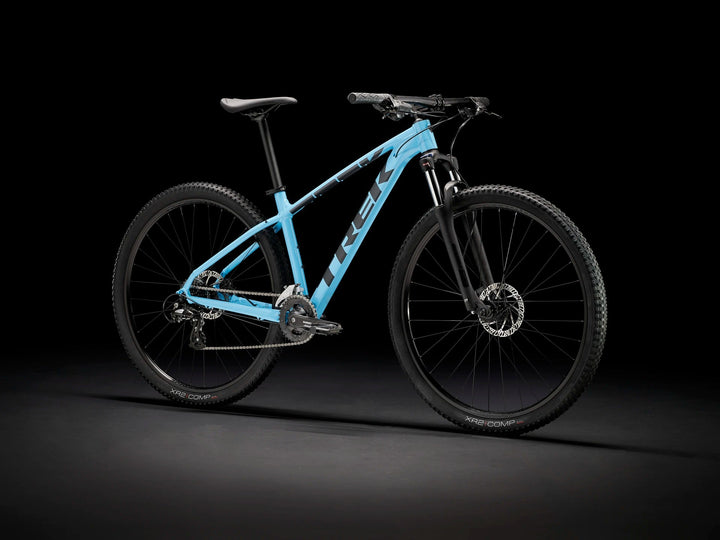

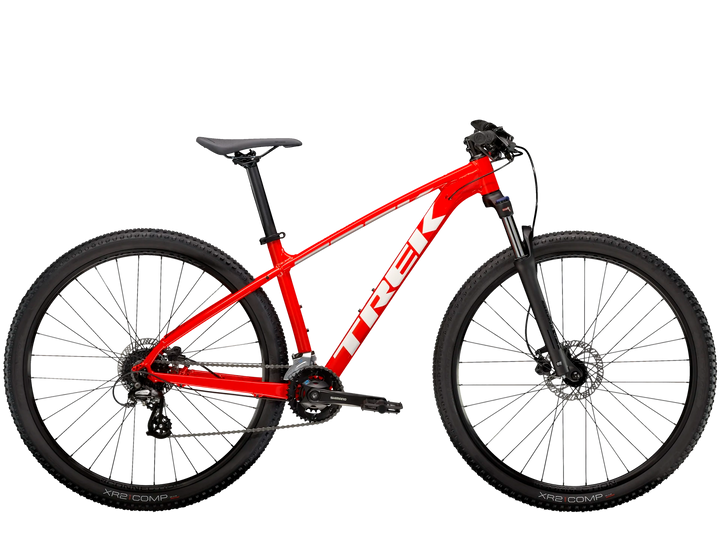

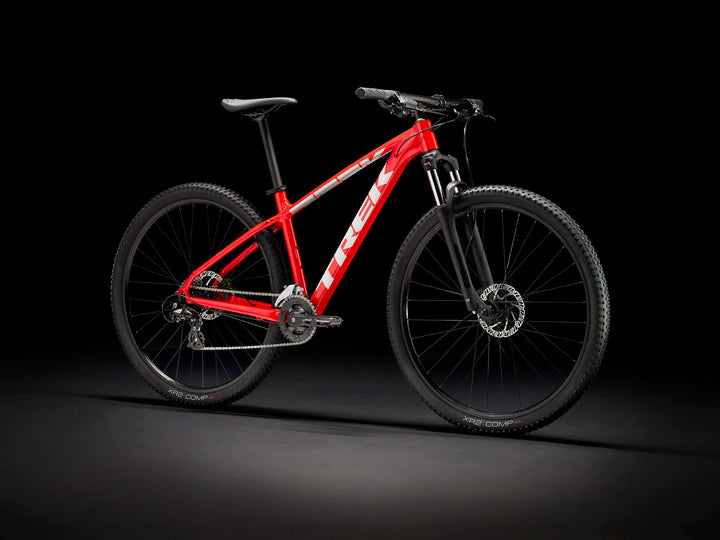

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Specifications:

*frame size: XXS, XS, S

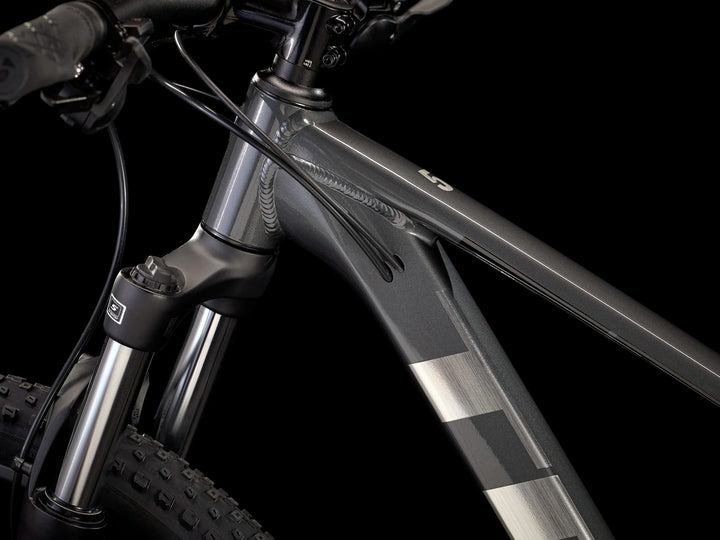

Alpha Silver Aluminum, Curved Top Tube, Internal Cable Routing, Chainstay Disc Brake Mount, Rack and Bracket Mount, 135x5mm QR
size: M, ML, L, XL, XXL
Alpha Silver Aluminum, Internal Cable Routing, Chainstay Disc Brake Mount, Rack and Bracket Mount, 135x5mm QR
*cross size: XXS
SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel, 26'' wheels
size: XXS
SR Suntour XCT 30, coil spring, preload, hydraulic locking, 26-inch wheels 42mm offset, 100mm QR, 100mm travel
size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic locking, 27.5-inch wheels 42mm offset, 100mm QR, 80mm travel
size: S
SR Suntour XCT 30, coil spring, preload, hydraulic locking, 27.5-inch wheels 42mm offset, 100mm QR, 100mm travel
size: M, ML, L, XL, XXL
SR Suntour XCT 30, coil spring, preload, hydraulic locking, 29-inch wheels 46mm offset, 100mm QR, 100mm travel
Maximum compatible fork stroke 100 mm (XS and S: 490 mm from shaft to crown, Medium and above: 509 mm from shaft to crown)
wheel
front part of wheel hub Formula DC-20, alloy, 6 bolt, 5x100mm QR
rear of hub Formula DC-22, alloy, 6 bolt, Shimano 8/9/10 freehub, 135x5mm QR
skewer rear 152x5mm quick release
*rim size: XS,S
Bontrager Connection, double wall, 32 holes, 20 mm wide, Schrader valve, black
size: M, ML, L, XL, XXL
Bontrager connection, double wall, 32 holes, 20 mm wide, Schrader valve
*fetal size: XXS

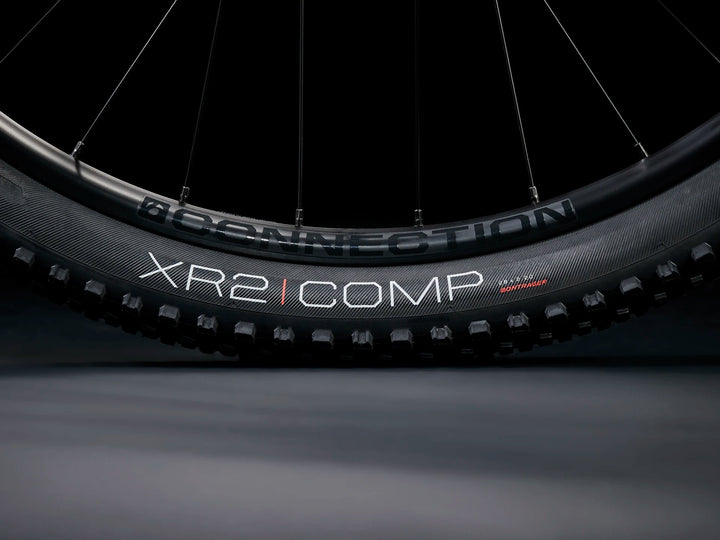

Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20''
size: XS,S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
size: M, ML, L, XL, XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Maximum tire size Frame: 29x2.20" (XS and S: 27.5x2.40"), Fork: See manufacturer
Transmission system
gear lever Shimano Altus M315, 8-speed
front derailleur Shimano Altus M315, 34.9mm clamp, top swing, double pull

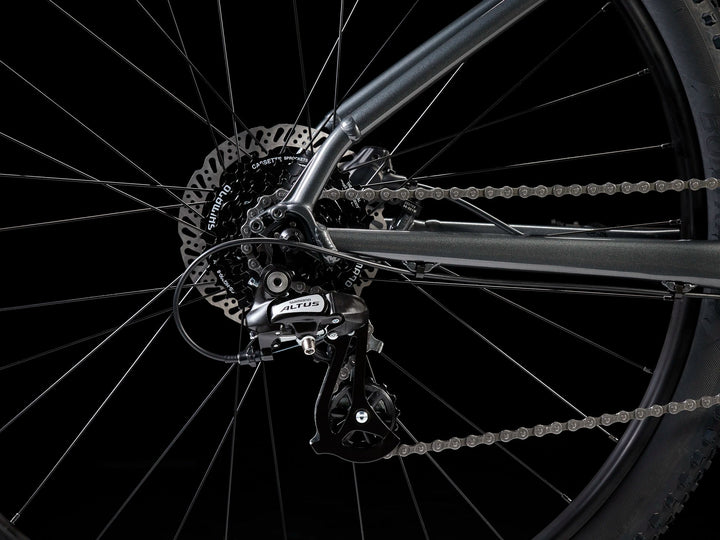

rear derailleur Shimano Altus M310
*crank size: XXS
Prowheel TM-CY10, 36/22, length 160mm
size: XS,S,M
Shimano M315, 36/22, length 170mm
size: ML,L,XL,XXL
Shimano M315, 36/22, length 175mm
bottom bracket Sealed cartridge, 73mm
a magnetic tape Shimano HG200, 12-32, 8-speed
chain KMC Z8.3, 8 speed
Maximum link size 1x/2x: 34T, 3x: 42T
Element
saddle Bontrager Arvada, steel rail, 138 mm wide
*Seat post size: XXS
Bontrager alloy, 31.6mm, offset 12mm, length 300mm
size: XS,S,M
Bontrager alloy, 31.6mm, offset 12mm, length 330mm
size: ML,L,XL,XXL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*handlebar size: XXS,XS
Bontrager alloy, 31.8mm, height 5mm, width 690mm
size: S, M, ML, L, XL, XXL
Bontrager alloy, 31.8mm, 5mm rise, 720mm width
*Dry size: XXS
Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 35mm Length
size: XS
Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 50mm Length
size: S
Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 60mm Length
size: M
Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 70mm Length
size: ML,L
Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 80mm Length
size: XL, XXL
Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 90mm Length
earphone Semi-integrated, 1-1/8''

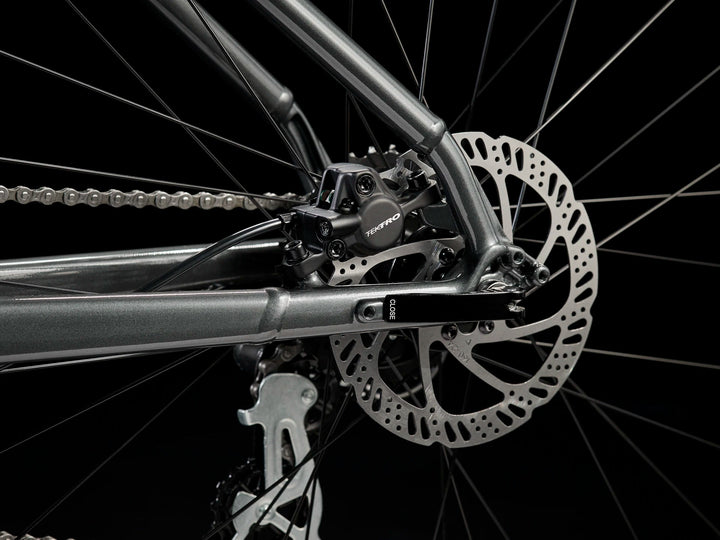

brake Tektro HD-M275 Hydraulic Disc
brake group Tektro HD-M275 hydraulic disc, 160mm rotor
weight
weight Medium - 13.97kg/30.81lbs
Weight Limit The maximum total weight limit for this bike (bicycle, rider and cargo combined) is 300 lbs (136 kg).
