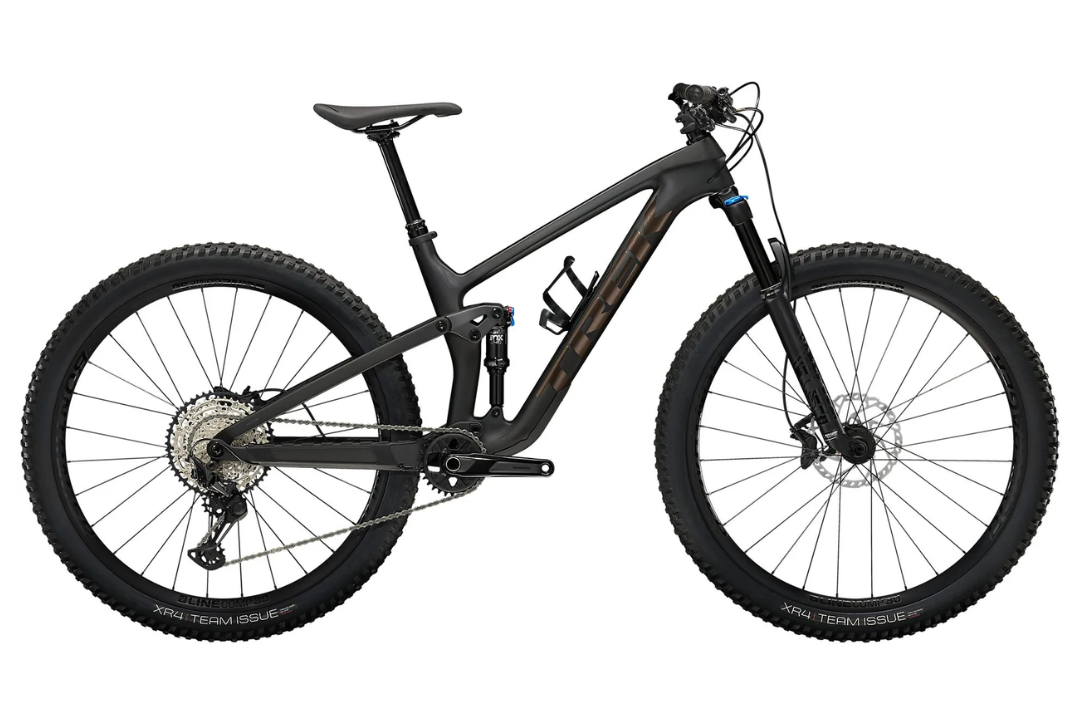

TREK 2023 Top Fuel 9.7 SLX/XT carbon fiber front and rear suspension bike-Matte Raw Carbon black Mountain Bike
Regular price
$40,800.00
Sale price$38,760.00
Save 5%
/
Top Fuel 9.7 is a quick and nimble full suspension carbon mountain bike that fuses the flat-out speed of a cross country bike with the trail-munching appetite of a trail bike. It lets you fly up climbs, hammer through flat sections, and keep on truckin' on rough descents.
Specifications:
| Frame | OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel |
|---|---|
| Fork | Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 120mm travel |
| Shock | Fox Performance Float DPS, 3-position damper, 185mm x 50mm |
| Max compatible fork travel | 130mm (541mm axle-to-crown) |
Wheels
| Wheel front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle |
|---|---|
| *Wheel rear |
Size: XS Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle |
|
Size: S, M, M/L, L, XL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle |
|
| Skewer rear | Bontrager Switch thru axle, removable lever |
| *Tire |
Size: XS Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 27.5x2.40'' |
|
Size: S, M, M/L, L, XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40'' |
|
| Tire part | Bontrager TLR sealant, 6oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29x2.50" (XS: 27.5x2.50"), Fork: see manufacturer |
Drivetrain
| Shifter | Shimano XT M8100, 12 speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| *Crank |
Size: XS, S, M, M/L, L Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length |
|
Size: XL Shimano Deore M6120, 30T ring, 55mm chainline, 175mm length |
|
| *Bottom bracket |
Size: XS, S, M, M/L, L, XL Shimano BB-MT501 BSA |
|
Size: XS, S, M, M/L, L, XL Shimano SM-BB52, 73mm, threaded external bearing |
|
| Cassette | Shimano SLX M7100, 10-51T, 12 speed |
| Chain | Shimano SLX M7100, 12 speed |
| Max chainring size | 1x: 36T round, 34T oval, min 28T |
Components
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| *Seatpost |
Size: XS, S TranzX JD-YSP39, 100mm travel, internal routing, 34.9mm |
|
Size: M, M/L TranzX JD-YSP39, 150mm travel, internal routing, 34.9mm |
|
|
Size: L, XL TranzX JD-YSP39, 170mm travel, internal routing, 34.9mm |
|
| *Handlebar |
Size: XS, S Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width |
|
Size: M, M/L, L, XL Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Elite, 35mm, 0 degree, 45mm length |
| Headset | Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Brake | Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper |
| *Brake rotor |
Size: XS, S, M, M/L, L, XL Shimano RT66, 6-bolt, 160mm |
|
Size: XS, S, M, M/L, L, XL Shimano RT66, 6-bolt, 180mm |
Accessories
| Bag | Bontrager BITS Internal Frame Storage Bag |
|---|
Weight
| Weight | M - 13.38 kg / 29.51 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
