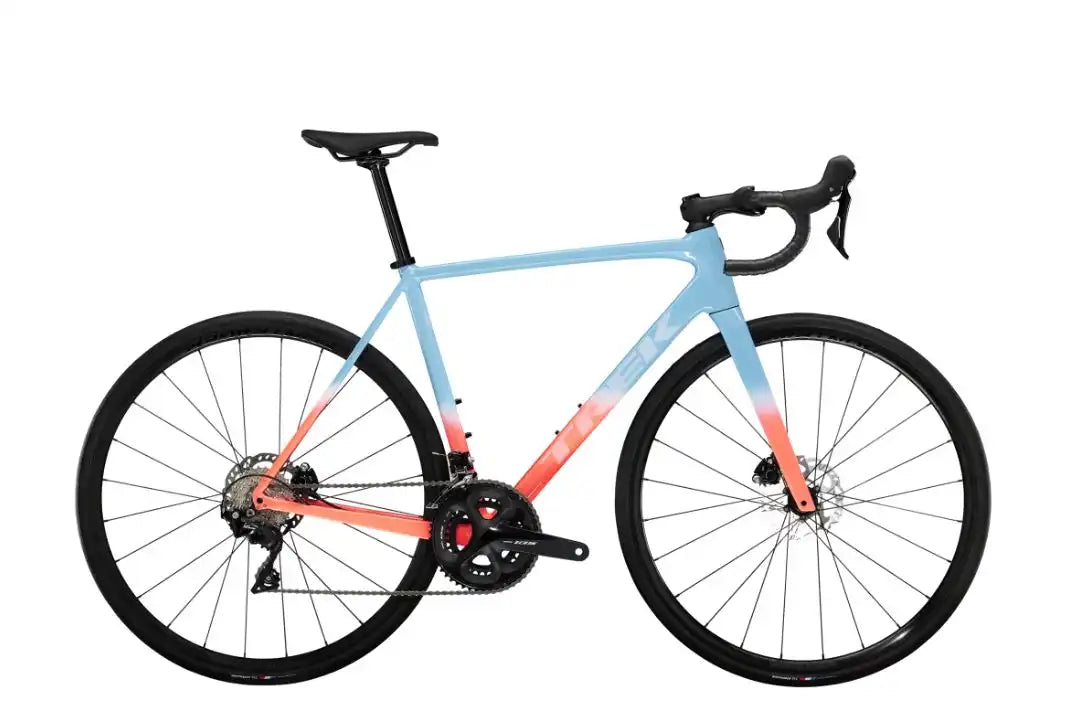

Trek Emonda ALR 5 DISC Brake Road Bike 52CM
Regular price
$21,840.00
Sale price$16,800.00
Save 23%
/
Émonda ALR 5 Disc is a light and responsive road bike with an advanced alloy frame that gives it the sleek looks and handling of a far more expensive carbon bike. Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.
Specifications:
| Frameset | |
| Frame |
Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12 mm thru axle
|
| Fork |
Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
|
| Frame fit | H1.5 Race |
| Wheels | |
| Hub front |
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
|
| Skewer front |
Bontrager Switch thru-axle, removable lever
|
| Hub rear |
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
|
| Skewer rear |
Bontrager Switch thru-axle, removable lever
|
| Rim |
Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve
|
| Tyre |
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm
|
| Max tyre size | 28mm |
| Drivetrain | |
| Shifter |
Shimano 105 R7020, 11-speed
|
| Front derailleur |
Shimano 105 R7000, braze-on
|
| Rear derailleur |
Shimano 105 R7000, short cage, 30T max cog
|
|
*Crank
|
Size: 47
Shimano 105 R7000, 50/34 (compact), 165 mm length |
|
Size: 50, 52
Shimano 105 R7000, 50/34 (compact), 170 mm length |
|
|
Size: 54, 56, 58
Shimano 105 R7000, 50/34 (compact), 172.5 mm length |
|
|
Size: 60, 62
Shimano 105 R7000, 50/34 (compact), 175 mm length |
|
| Bottom bracket |
Praxis, T47 threaded, internal bearing
|
| Cassette |
Shimano 105 R7000, 11-30, 11 speed
|
| Chain |
Shimano 105 HG601, 11-speed
|
| Max. chainring size |
1x: 48T, 2x: 53/39 (Shimano), 48/35 (SRAM)
|
|
Components
|
|
|
*Saddle
|
Size: 47, 50, 52
Bontrager Verse Short Comp, steel rails, 155 mm width |
|
Size: 54, 56, 58, 60, 62
Bontrager Verse Short Comp, steel rails, 145 mm width |
|
|
*Seatpost
|
Size: 47
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |
|
Size: 50, 52, 54, 56, 58, 60, 62
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
|
|
*Handlebar
|
Size: 47, 50
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width |
|
Size: 52
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width |
|
|
Size: 54, 56, 58
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width |
|
|
Size: 60, 62
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
|
| Handlebar tape |
Bontrager Supertack Perf tape
|
|
*Stem
|
Size: 47
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
|
Size: 50
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
|
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
|
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
|
Size: 60, 62
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
|
| Brake |
Shimano 105 hydraulic disc
|
| Brake rotor |
Shimano RT70, CentreLock, 160 mm
|
| Rotor size |
Max brake rotor sizes: 160mm front & rear
|
| Weight | |
| Weight |
56 – 9.00 kg/19.85 lb
|
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
|
