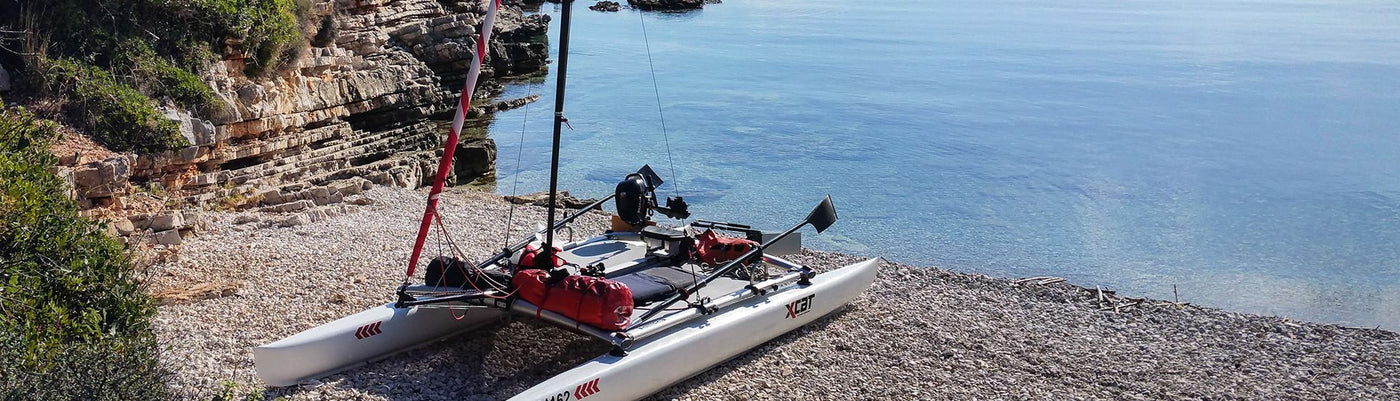

Whether sailing, rowing, stand-up paddling or motoring, the XCAT is the perfect multi-sport platform. This boat is simply enjoyed thanks, in part, to its ease of assembly and transport. Simply unload it from your roof rack or truck bed and assemble it in only a few minutes with no tools. The XCAT is the perfect fit for anyone looking for a portable sail or coastal rowboat and aren’t interested in fussing with inflatables or trailers.
A winner of SAIL Magazine’s 2017 award for Best Day Sailer, the XCAT combines versatility, portability and performance in a way that no other boat on the market can. From capturing high winds with XCAT Sail, or leveraging the forward-facing RowVista® or rear-facing RowMotion® rowing mechanisms with the XCAT Row, the XCAT opens up a whole new world of adventures.

Length 5 m (197")
Width 2.08 m (82")
Height 5.1 m (197")
Sail Area 8.4 m2 (Main sail 5.2 m2 (56 ft²); Genoa 3.2 m2 (35 ft²))
Mast Length 4.5 m (177") (2-piece)
Weight 75 kg (165 lbs) (Basic boat 55 kg (121 lbs) +
complete sail option 20 kg (44 lbs))
Max. Load 240 kg (529 lbs)
Persons 1-3
Design Category C
Assembly Time less than 12 minutes

5 Facts

01 Automatic heave-to for a break on the water
The XCAT does it with finesse by counter-steering automatically. Haul in the main sheet, roll in the jib, shift your weight to the front and the XCAT does the rest automatically: the boat turns into the wind, moves back, the rudder counter-steers the stern to port or starboard and the boat moves forwards again. As it turns into the wind again it repeats the whole cycle, but in the other direction. The result: the XCAT swings in the wind between 15° to port and 15° to starboard, and that works even when a storm suddenly develops. Safety that only the XCAT can offer.

02 Genoa style head sail instead of a jib
Provides excellent power and can be rolled in quickly with the endless roller.
Main sail with 6 easy-to-fit sail battens.
Strong and tough 6 oz. Dacron sail cloth.
03 The XCAT does not need a dagger board
The shape of the hull with its full-length keels prevents leeway.

04 Advantages
Thanks to the hull keels, the XCAT is unbelievably smooth in the water and virtually has an integrated self-steering system. On the XCAT you can simply let go of the tiller and control the boat by shifting your weight. Move your weight forward and the XCAT luffs up into the wind, regardless of the direction it is coming from. Move your weight aft and the XCAT steers away from the wind. That is simply awesome.
Boats with a dagger board only hold their course if they are steered with care. On longer trips it is tiring to always have to concentrate on steering.
Easy running up on the beach
No sensitive folding dagger board design
Low risk of capsizing (Side pressure on dagger board increases the tendency to capsize

05 No sailing license required!
However, we recommend that you learn the basics of sailing (from a book or online) or do a sailing course. Ideally, the sailing school should teach you using an XCAT.

Key features
Very simple Genoa sheet system with Barber hauler for optimum sail trim
Sail batten tensioner – Tensioning with less effort
Genoa sheet connection – Easy without knots
Automatic counter-steering
Rudder with grounding protection is simply slotted in and secured in place
Dyneema shrouds – As strong as a steel cable but as flexible and soft as a cord
Bowsprit with high-strength carbon tube for the toughest conditions
XCAT Sail with optimised air flow
No risk of the luff snagging on the mast
Safety first – The sail always slides down easily, in case you ever need to do it quickly
Components of the XCAT Sail

Haswing’s Ultima electric outboard is a perfect match for small inflatables, tenders and car-toppers. It can also be used to power some small yachts or be used as an auxiliary motor.

Its powerful brush-less electric motor can deliver up to 110lbs thrust of step-less adjustable speed control in either forward or reverse, equivalent to that from a 4hp petrol outboard. However, at just 15.9kgs, it is considerably lighter than a 4hp petrol outboard.

The Haswing Ultima’s unique vertical battery mount design creates an extremely compact outboard and, with the battery able to be easily removed onshore or at sea, the result is two light and very easy to handle 5kg and 10kg components, perfect for stowing on-board or in a vehicle.

Suitable for both salt and freshwater use, the Ultima boasts a maximum speed of around 5 knots and can cruise economically at around 3 knots, giving a range of up to 18 nautical miles (34 km) on a single charge. With a maximum 55 decibel rating, the Ultima complements its long range with ultra-quiet cruising.

Its lightweight, compact design makes it easy to attach and detach both on land and at sea and, with 7 tilting positions, can be used in almost every depth of water.

The Ultima’s rechargeable LiPo battery has a LED battery level indicator that provides an up-to-the-minute battery status display, an extendable folding handle that can expand to 400mm and has a tilting angle of 180 degrees, and a handy magnetic kill switch.


Benefits & Features*

Equivalent to a 3-4HP Petrol Outboard

Powerful 110lb Thrust brushless motor

Perfectly matched to Dinghy’s, Tenders and inflatables

Digital Speed control with an Adjustable handle

Fitted with an emergency kill switch

Lightweight, compact design for easy transportation and storage

Powered by an easily removable rechargeable LiPo battery with LED status indicator

Total weight: 14.8 Kg

Battery weight: 5 Kg

Designed for Fresh and Saltwater use

540mm Shaft length


*For further specifications please click the "Features" tab

Specifications*

Shaft Power: 3HP

Compatible petrol outboard: 4HP

Peak Thrust in lbs: 110lbs

Max Voltage: DC 29.6V

Max Power: 1030W

Max Amp: 35A

Motor: Brushless

Depth Adjustment: Not available

Prop Type: 3 blade prop / 9.3 inch diam

Prop Speed at Full Power: Max 1530 rpm underwater

Battery Type Required: 29.6V. 20.3AH rechargeable LIPO Battery

Charging Time: 6-7 hours

Steering: 360 degree control

Decibel Level: 55db

Weight: 15.9kg

Shaft Type: Cast Aluminium

Shaft Length: 700mm

Colour: Black

Max Boat Length (Suggestion dependant on weight ) 7 metres

The new FUSION features more generous volume and payload that cater to those looking for easier ride and carrying more luggage. The comfortable diamond grooving footpad provides extra grip while the strengthened stainless steel leash D-ring ensures a safe ride in small waves.

Constructed with Aqua Marina’s exclusive Drop Stitch Light Technology, the FUSION is lightweight but super stiff. Coming with our new customized zip backpack this year, these classic models are highly portable whilst packing everything inside.



FUSION ALL-AROUND SERIES

SIZE: 10'10"



MODEL : FUSION 10'10"

PRODUCT : BT-21FUP

LENGTH :10'10" / 330cm

WIDTH : 32" / 81cm

THICKNESS : 6"/ 15cm

VOLUME : 320L

NET WEIGHT : 19.0lbs / 8.6kg

Ride real with the KICKR smart bike KICKR BIKE is driven by a silent belt, no matter how late or early you train, you can keep quiet,
with ±1% accurate power data to accurately record the details of the bike, support up to 2200W power output,
using 5.85kg Idler and built-in motor combined with training software create a realistic riding road feel.
Through the tilt and resistance of the training platform and the simulation of the rise and fall of the route, you can feel the slope more deeply, refine the muscle training and pedaling skills, and the
slope simulation range From +20% to -15%, it can simulate the feeling of braking at the same time, making downhill and shifting more realistic!
Five adjustable spaces: stack, reach, seat tube rearward movement, seat cushion height, riser height,
can make large cockpit changes, suitable for heights of 152~193 cm In addition, the
crank length has five leg length settings of 165, 167.5, 170, 172.5, and 175 cm.
Real-time display of slope simulation and gear ratio selection through LEDs can simulate the operation details of SRAM, SHIMANO, and Campagnolo transmission systems,
as well as the subtle resistance differences between different gear ratios. The most realistic shifting feel restores the actual experience of riding outside,
supports Bluetooth, ANT+, ANT+FE-C, and can be connected to smart devices and GPS computers at the same time.
Without additional induction device, it can provide speed, cadence, distance, power, and complete training data is recorded

Responsible, universal and light, the TEMO·450 propulsion solution looks after both boaters and the environment.
Designed to correspond to all profiles and practices, TEMO's electric outboard motors allow you to do dinghy transfers and to manoeuvre in port or in an anchorage without straining your body or mind!

LIGHT AND PORTABLE
With a unique design and weighing less than 11 lbs., TEMO·450 is ultra compact and practical.

ERGONOMIC
With its multi-handle and telescoping length, just over 4 feet to 5.5 feet, TEMO·450 is simple and comfortable to use for any sailor.

POWERFUL
With its 450W motor, TEMO·450 allows you to propel a 10 feet long dinghy with 3 people on board.

MULTI-SUPPORT
Thanks to its rowlock socket, TEMO·450 allows you to drive any boat (tenders,
fishing boats, sailing dinghies, etc.).

PRACTICAL AND ELECTRIC
Practical and electric! Plug it directly into a 220V or 12V socket and then enjoy 80 minutes of autonomy at cruising speed.

MADE IN FRANCE
TEMO·450 is made in France, between Britany and the Pays de la Loire region.
Made in France, with a quality approach, TEMO motors are reliable, durable and very easy to use.

Specifications

Motor Motor power 450W
Propulsive power 200W
Static thrust 12Kg
Charging 220V or 12V/ 24V
Charging time with 220V 3½ h
Nominal voltage
25V

Function
Ideal angle of inclination 30°
Acceleration Progressive acceleration on trigger
Controls Ahead / astern

Design Total weight in kg
4,9kg

Length
130 to 170 cm
3-Bladed propeller diameter
17,5cm
Waterproof rating
IP67
Concept TEMO
Design Chedal Anglay Design

FAQ
Is the Temo 450 waterproof?
Yes, 100% waterproof with IP67 certification (tested 30 minutes at a depth of 1 meter)

Does the Temo 450 float?
TEMO floats for only a few seconds, but then will sink quickly. We offer a buoyancy device as an accessory.
Please note that TEMO also comes with a rowlock attachment that allows you to secure TEMO on board and avoid any risk of falling into the water.

Can the Temo 450 be mounted to the boat under lock and key?
Yes definitely!
Even though TEMO is very light and easy to carry in the transport bag, it can also be left on your boat.
TEMO offers an anti-theft system(available in our accessories) to secure TEMO when you are away.
Also note that TEMO has a magnetic security key that acts as a circuit breaker. Without the key, the engine cannot start.

How do I know if Temo 450 is suitable for my boat?
If you currently use the oar or a small motor (equivalent or less than 2HP) for your trips by dinghy then TEMO is a perfect fit. Temo 450 is 3 times more powerful than a single person can row.
Generally, TEMO will be able to propel boats up to 2m50 with 2-3 people on board and loaded with equipment.
If you are still in doubt, please contact us!

What is the range at full power?
The speed of TEMO can be adjusted by pressing the trigger. If you hold down the trigger, you have up to 42 minutes of autonomy. And up to 80 minutes at half speed.

Electric drive systems in pleasure craft
Advantages of electric motors? In short: Clean, quiet, low maintenance, reliable, practical, super strong and very predictable and controllable range.

With a huge swim platform and tons of usable space on deck,
the GTX Limited adds 5-star touch to an already incredible watercraft. Standard Bluetooth display,
100 watts of bumping audio, USB port, cover and more, nothing will stand between you and adventure.

Feature
7.8-INCH WIDE COLOR DISPLAY
HI-RES BLUETOOTH GAUGE: Stunning colors and crystal clear display shows vehicle data and pairs with compatible apps to show maps, weather and more on your dash. Take full advantage of boosted sound quality and intuitive speed-sensitive volume control.
BLUETOOTH AUDIO-PREMIUM SYSTEM
YOUR PERSONAL SOUNDTRACK: Ride to your own beat with the 100W BRP Audio-Premium System. Waterproof, fully integrated Bluetooth audio system with the remote control pad on the left speaker, you can quickly change songs and volume.
FEATURES
HULL TYPE: ST3 Hull™
VTS™ (Variable Trim System), Boarding ladder, RF D.E.S.S.™ Key, Watertight phone compartment, LinQ™ attachment system, Knee pads, Wide-Angle Mirrors, Handlegrip with Palm Rest, Footwell Carpets, Swim platform carpet with Sea-Doo® Logo, Large Swim Platform, Tilt Steering, Ski tow eye
INGENIOUS CARGO SPACE
DIRECT ACCESS FRONT STORAGE: All your gear within arm's reach thanks to a 25.3 US gal (96 L) front storage area, easily accessible from a seated position. Simply raise the handlebars to access all the essentials for the day's adventures. Storage organizer included.
INTELLIGENT BRAKE AND REVERSE
THE INDUSTRY’S FIRST AND MOST INTUITIVE ON-WATER BRAKE: Recognized by the U.S. Coast Guard for improving boat safety and now in its third generation, the Sea-Doo exclusive iBR system allows you to stop sooner. With both hands on the handlebars, riders can engage forward, neutral, and reverse for stable, worry-free maneuvering at low speeds.
MORE USEABLE SPACE
CONFIGURABLE. COMFORTABLE. GROUNDBREAKING.: The largest swim platform in the industry. Flat, stable and comfortable, it's perfect for lounging, prepping for watersports and re-boarding. Includes LinQ accessory system for ultimate versatility.
PURE ROTAX POWER
300 HP: The Rotax 1630 ACE engine delivers 300 HP of pulse-pounding excitement and comes equipped with Advanced Combustion Efficiency (ACE) technology for exceptional economy.
RIDE HIGH AND DRY
iDF - INTELLIGENT DEBRIS-FREE PUMP SYSTEM: Next level peace of mind on every ride. With the ingenious iDF system riders can clear a clogged intake in seconds without ever leaving the seat. A simple push of a button reverses pump flow to effortlessly clear debris.
STABLE AND PREDICTABLE
INNOVATIVE PERFORMANCE: The benchmark for rough water handling, stability, and offshore performance. The ST3 platform offers easy boarding, plenty of space to move about on deck and superior confidence.

GENERAL INFORMATION
ManufacturerSea-DooModel Year2022
ModelGTX Limited 300Model Code14NC
ColorLiquid Titanium / Black
BODY
Hull MaterialFiberglassStorage
Glove box - 0.8 US gal. (2.9 l)

Front bin - 25.3 US gal. (96 l)

Total - 26.1 US gal. (98.9 l)

DIMENSIONS
Length135.9 in. (345.1 cm)Height44.8 in. (113.8 cm)
Width49.4 in. (125.5 cm)WeightDry - 849 lb. (385 kg)
DRIVETRAIN
Propulsion SystemReverse system - Electronic iBR®
ELECTRICAL
InstrumentationLarge panoramic 7.8 in. wide LCD display - BRP Connect, Music, Weather, Bluetooth connectibility, Speedometer, RPM, Clock, VTS™, Fuel consumption, Fuel autonomy, Water Temperature, Depth Finder, Speed statistics, Vehicle hours, Sport Mode, ECO® Mode, Slow Mode, Speed Regulator
ENGINE
ExhaustD-Sea-BeI™ SystemFuel Type91 octane
CoolingClosed-Loop Cooling System (CLCS)EngineType - Rotax® 1630 ACE™ - 300
Horsepower300 hpDisplacement1,630 cc
Fuel Capacity18.5 gal. (70 l)Fuel System
Supercharged with external intercooler

iTC™ (Intelligent Throttle Control) System

OPERATIONAL
Weight Capacity600 lb. (272 kg)Seating
3 person capacity

Ergolock™ two-piece seat with stepped design

Seat strap

OTHER
Additional Colors
Metallic Sage

Liquid Titanium / Black

WarrantyBRP limited covers the watercraft for two year

With the electric fin, you have all the options to electrify whatever you want.

Made in Germany
Enjoy the extra boost and open up new perspectives for discovering the world.

WHAT’S IN THE BOX:
Electric Fin
Remote
1 Adapter for Slide-in Box and US Box
Screws and allen key
Charger
1 User Manual

The JayKay E-Fin is a fully integrated underwater drive in the fin design for stand-up paddles or similar floats with a US box or slot box mount.

The drive has an output of approx. 400 watts and generates a static thrust of approx. 5 kg. The drive, controller and energy storage are completely integrated in the fin (all-in design) and are dust and water-tight according to IP 68. The e-fin can be attached to all SUPs or kayaks with a slide-in box or US box holder using a screw-on adapter and has dimensions of 252 x 265 x 110 mm (hxlxw) and a weight of approx. 1.9 kg.

The material of the housing is made of polycarbonate and is available in different colors. The power can be continuously adjusted via the remote. This results in the following runtimes:

4 h @ 50W
2 h @ 100W
1 h @ 200W
0,5 h @ 400W
The achievable speed is strongly dependent on the geometry of the float and the weight of the rider and is approx. 6 – 8 km/h.

Battery packk

The built-in LiIon battery pack has a nominal voltage of 21.6 V DC and a capacity of 10 Ah. The e-fin is charged with an external power supply unit via the built-in magnetic connector. The charger has an output voltage of 25.2 V DC and a maximum current of 4.0 A. This results in a charging time of approx. 3 hours.

The e-fin switches on automatically when it is immersed in water and switches off as soon as it is taken out of the water. The drive is automatically stopped when falling into the water. The warranty is 24 months or 12 months on the battery.

Remote

The remote is required to control the e-fin and can be attached to all paddles with a diameter of 24-28 mm. The runtime of the remote is 6 hours. The remote has dimensions of 118 x 30 x 40 mm (lxwxh) and a weight of 50 g.

The remote is charged using the included charging cable. This is connected to a standard USB source on the one hand and to the magnetic charging plug on the remote on the other. The charging time is approx. 2.5 hours. The housing is made of polycarbonate and is also available in different colors. The remote is dust and waterproof according to IP 68.

The Off / AUTO / MAN states can be set using the rotary knob on the remote.
OFF: Remote off
AUTO: paddle assistant, the motor supports the paddle stroke with the set power.
MAN: Continuous power, the motor works continuously with the set output.

The motor output of the e-fin is set using the slider. For more performance and or runtime, up to five e-fins can be coupled with a remote. All connected E-fins run synchronously.
