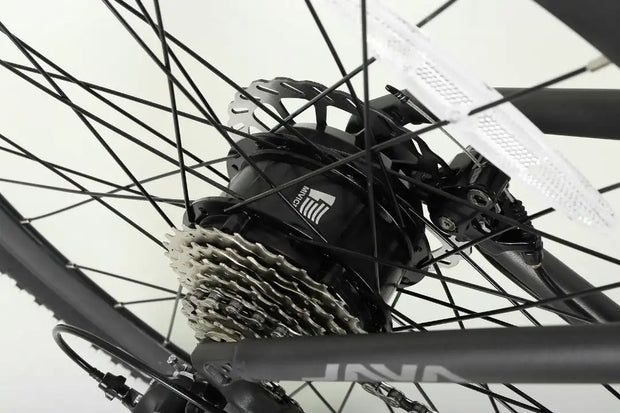

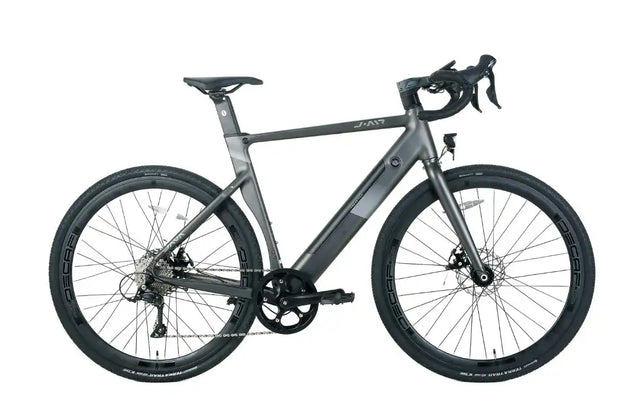

The FRENETICA electronic control system adopts Max Power's M080 rear-drive hub motor, a new force in the industry. The rated voltage and power are DC36V and 350W respectively, and the peak torque can reach 40N.m.
The FRENETICA electronic control system achieves the characteristics of light weight, small size, abundant power and stable performance, providing the best power-assisted driving mode for all-terrain riding modes, and the power output is quick and smooth.
FRENETICA's battery capacity is 360Wh, the riding range can reach 60 kilometers, the maximum speed can reach 32 kilometers per hour, and each charge takes about 5 hours.

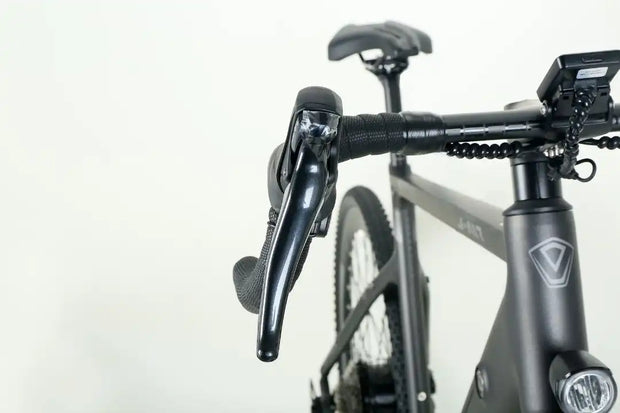

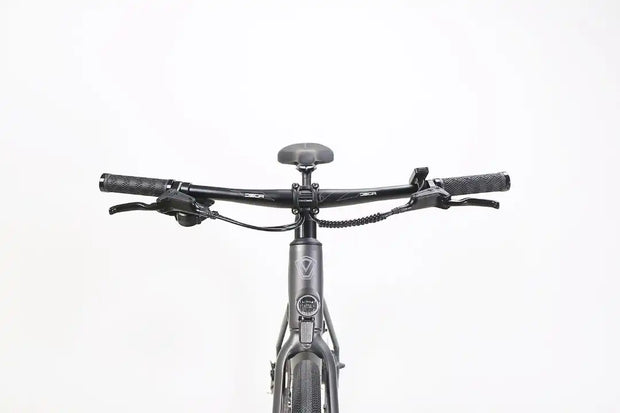

The integrated instrument is in the middle of the handlebar for easy viewing, and the control buttons are on both sides of the handlebar for easy operation. The instrument has real-time speed, battery power, total mileage, maximum speed, average speed, calorie consumption, and other data query functions to help everyone understand. riding conditions
FRENETICA has different gear adjustments. You can also adjust the appropriate riding gear according to the riding surface.

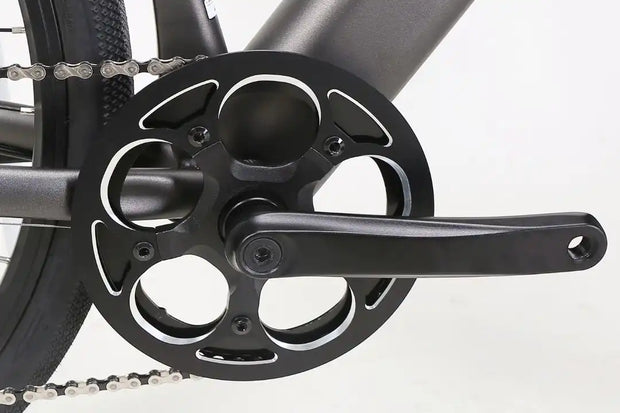

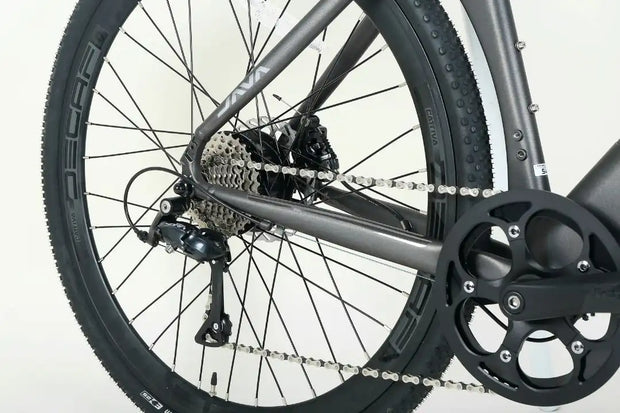

FRENETICA uses Shimano's 9-speed system. Both the hand shifter and the rear derailleur use Shimano SORA kits, equipped with a 48T single disc to provide a stable transmission system for riding.

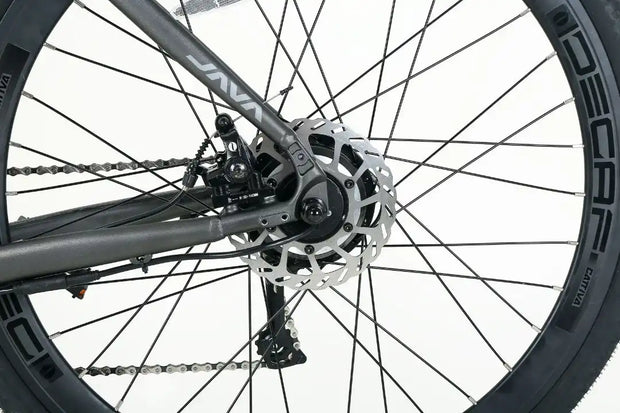

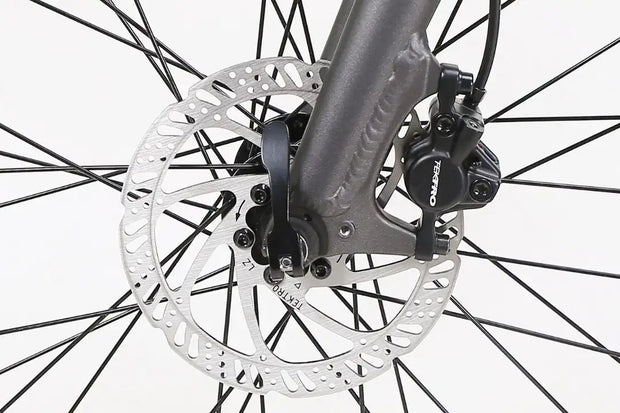

In terms of braking, it adopts a mechanical disc brake system and is equipped with Continental tires specially optimized for GRAVEL and electric assist, making it safer to ride in the wild.
|
Description
|
Brand
|
J-Air
|
|
Model
|
FRENETICA-Gravel
|
|
|
Max Load Weight
|
100kg
|
|
Frame System
|
Bike Frame
|
Aluminum alloy frame
|
|
Fork
|
Aluminum alloy fork
|
|
Shock
|
//
|
|
Size
|
45CM/48CM/51 CM/54CM
|
|
Color
|
|
|
Ride Components
|
HandleBar
|
Aluminum alloy integrated drop Handle Bar
|
|
Stem
|
//
|
|
Shift
System
|
Shifters
|
Shimano SORA RIGHT+LEFT
|
|
Front Derailleur
|
//
|
|
Rear Derailleur
|
Shimano SORA
|
|
Pedaling
Resistance
|
9-speed
|
|
Brake
System
|
Brake
|
Disc brake
|
|
Brakes Levers
|
Shimano SORA RIGHT+LEFT
|
|
Brakes
|
HB-108
|
|
Brake Disc
|
Hydraulic disc, F160mm
|
|
Hybrid
Cycling
Tech
|
Motor
|
Mivice Mivice Rear drive motor M080 DC36V350W
|
|
Motor Torque
|
Maximum 40Nm
|
|
Max Speed km/h
|
25km/h
|
|
Power Assist
|
Torque Sensor
|
|
Display
|
Frame Integrated LED Display
|
|
Battery
System
|
Capacity
|
EnergyPak Smart 360Wh, 36V, 10AH
|
|
Cells
|
SAMSUNG 21700 5000mah
|
|
Charger
|
EnergyPak Smart 2A Charger
|
|
Battery Life
|
500 Cycles
|
|
Recharge Time
|
5 Hours
|
|
Max Range
|
60km
|
|
Drivetrain
|
Chain Ring
|
SP60 BCD 130 48T
|
|
Cassette
|
11-32T
|
|
Chain
|
KMC e9 Sport.NP/NP, e-bike optimized
|
|
Crankarm
|
Mivice Aluminum alloy Crankarm 170mm
|
|
Pedals
|
Aluminum alloy with sealed bearing
|
|
Rims
|
700C Aluminum alloy rim, profile 40 mm
|
|
Tires
|
Continental Gravel 700*45C 6tpi e-bike optimized
|
|
Others
|
Saddle
|
Road Saddle
|
|
Seatpost
|
Aluminum alloy post
|
|
Net Weight ;
|
17.5KG including Battery
|
|
Bike Size Unfold
|
L1900mm*W420mm*H950mm
|
|
Bike Size Fold
|
//
|
|
Package Size
|
L1400mm*W230mm*H770mm
|
|
Gross Weight
|
23KG including Battery
|
