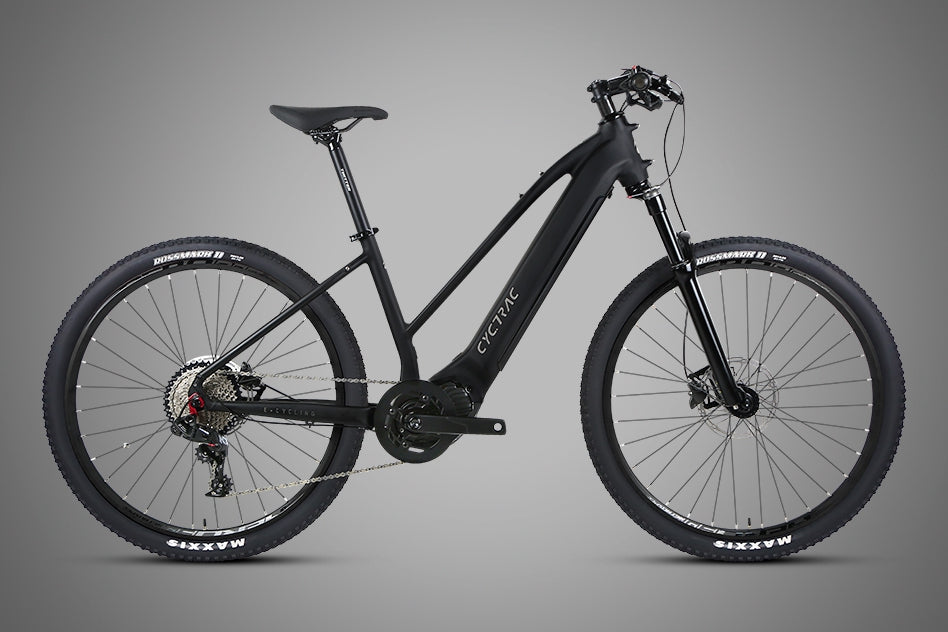

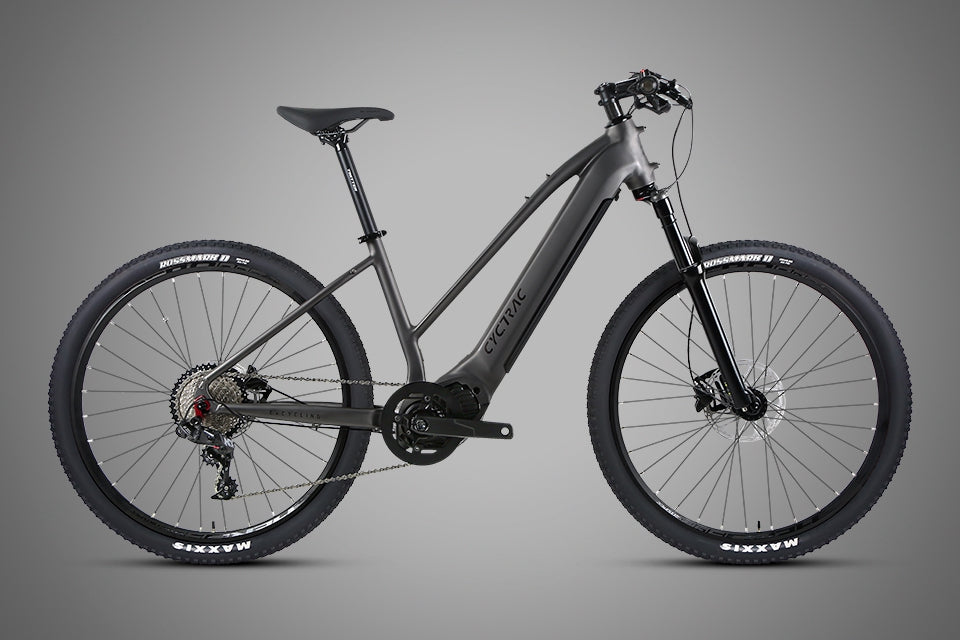

Name: 2025 CYCTRAC EC1 E-Bike
Brand: CYCTRAC
Price: 1366.0 USD
Availability: InStock

$1,366.00

Color

Matte Black

Matte Dark Grey

Wheel/Frame

Wheel 27.5" / Frame 16"

Motor

M510+36V20A(48V15A)

M560+48V15A

2025 CYCTRAC EC1 E-Bike – Powerful Mid-Drive Motor & Long-Range Performance
Conquer any terrain with the CYCTRAC EC1 E-Bike, featuring a Bafang M510/M560 mid-drive motor (95–130 N.m torque) and a Samsung 720Wh battery for up to 150KM range. Built for adventure with a lightweight AL6061 alloy frame, SRAM NX-11S drivetrain, and Tektro hydraulic brakes for precision control. Choose between 36V or 48V configurations, with a max speed of 45KM/h (unlocked) and IPX6 waterproofing. Ideal for commuters and off-road enthusiasts—ride farther, faster, and smoother!

Key Features:
✔️ Bafang Mid-Drive Motor (M510/M560) – High torque for steep climbs
✔️ 720Wh Samsung Battery – 120–150KM pedal-assist range
✔️ SRAM NX-11S Gearing – Smooth, reliable shifting
✔️ Tektro Hydraulic Disc Brakes – 180mm rotors for all-weather stopping power
✔️ Air Suspension Fork & Maxxis Tires – Comfort on rough trails

Specifications:

Bike Model	EC1
ConfRev	M510+36V20A(48V15A)	M560+48V15A
Frame Size	27.5×16"
Bike Color	MatteBlack / MatteDarkGray
Net Weight	22.2KG	22.6KG
Frame	CYCTRAC, EC1, Alu alloy AL6061,Flat weld&Smooth,Inner cables
Handelbar Sets	RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80,Seat post 31.6×350mm,Clamps 34.9mm QR
Fork	RS, MgAl alloy, Air suspension, Remote
Head Sets	Alu alloy CNC with sealed Bearings 52*52mm
Derailleur Lever	SRAM NX-11S
Rear Derailleur	SRAM NX-11S
Cranksets	Matching with Mid Motor, 38T
Cassettes	SUNSHINE-11S,11-42T
Chain	SUMC-11S
Brake	TEKTRO-M275 hydraulic disc brake,180/180mm
Hub	RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes
Rim	RS, Alu alloy with Double-wall&Rivets, W25×H21mm
Spoke	SHUNJIU, Circular 14G
Tire	MAXXIS, 27.5×2.25"
Grips	Circular 22.2×120mm, PU leather&locking Ring
Saddle	Comfortable for MTB
Pedals	MTB with lubricating
Motor System	Bafang Mid, M510, 36V250W (48V250W)	Bafang Mid, M560, 48V500W
Max Torque	95 N.m (Peak 130N.m)	130 N.m (Peak 150N.m)
Speed Limit	25KMh Default (max 45KMh)	25KMh Default (max 45KMh)
Pedal Sensor	Torque+Speed(cadence)	Torque+Speed(cadence)
Battery	Samsung 21700 Li-ion, 720Wh, 36V20A (48V15A)	Samsung 21700 Li-ion, 720Wh, 48V15A
Endurance	Max 130-150KM (pedal assist)	Max 120-140KM (pedal assist)
Charging Time	6-7 Hours	6-7 Hours
Charger	3A, DC2.1	3A, DC2.1
HMI	Bafang-C245, LCD digital	Bafang-C245, LCD digital
Waterproof	IP X6	IP X6
Max Load	130 KG	130 KG
