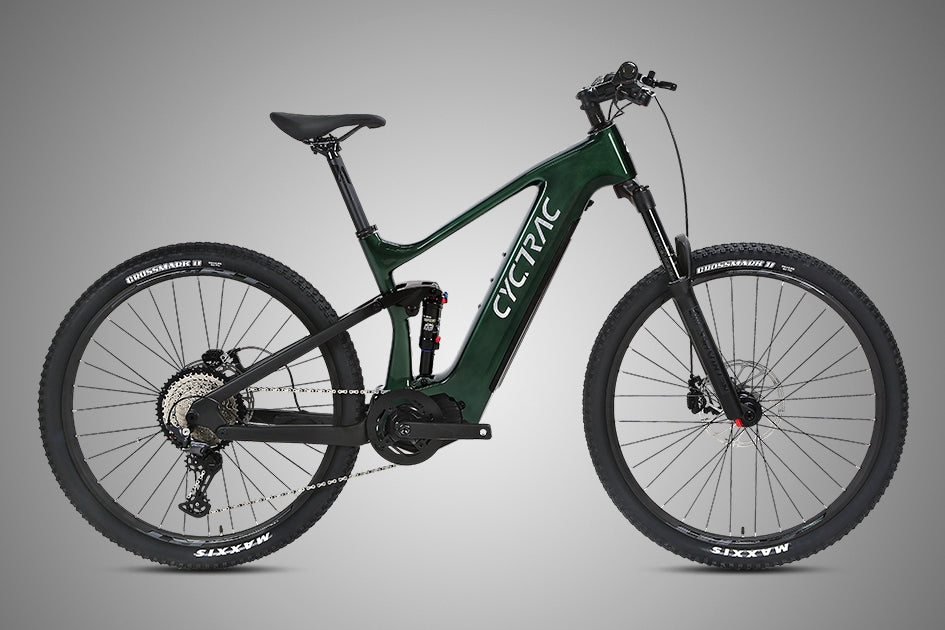

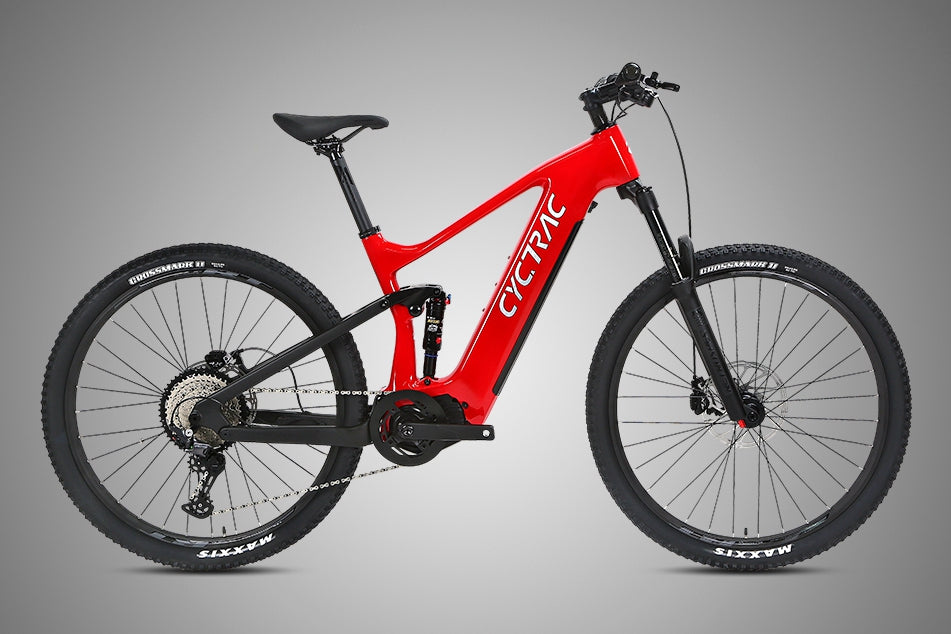

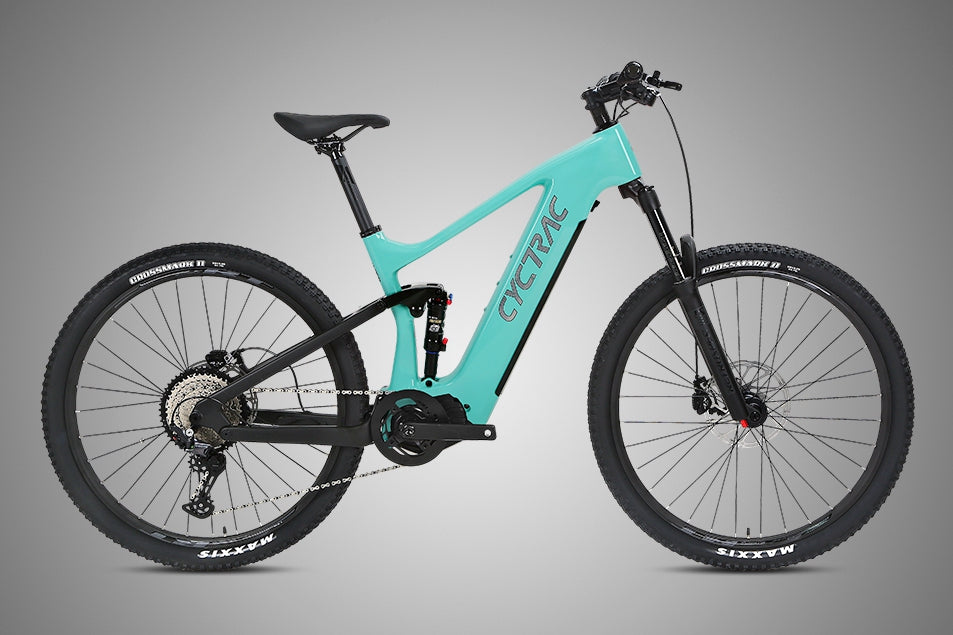

2025 CYCTRAC EM10 E-Bike
Regular price$2,114.00
/
High-Performance Carbon E-MTB with Bafang Mid-Drive Power
The CYCTRAC EM10 redefines electric mountain biking with its full-carbon frame, high-torque Bafang motor, and pro-level components. Built for aggressive trail riding, this e-bike delivers up to 150Nm of torque, 140mm rear travel, and 150mm suspension fork—perfect for conquering technical terrain with ease.
Specifications:
| Bike Model | EM10 | |||
| ConfRev | M510+36V20A (48V15A), LOW | M560+48V15A, LOW | M510+36V20A (48V15A), HIGH | M560+48V15A, HIGH |
| Frame Size | 29(27.5)×16" / 18" | |||
| Bike Color | DarkGreen / DarkGray / Red / SkyBlue, HolographicBlack | |||
| Net Weight | 23.1KG | 23.5KG | 23.9KG | 24.3KG |
| Frame | CYCTRAC, EM10, AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost,140mm Travel, DNM rear shox200*55 | |||
| Handelbar Sets | RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 60, Clamps 34.9mm | |||
| Seat post | RS, Alu alloy,Matte, 31.6×350mm | KS adjustable lifting with hydraulic, Remote,31.6**395*125mm | ||
| Fork | RS, MgAl alloy, Air suspension,150mm,Manual,Thru-axle 15*110 | ROCKSHOX-RECON, Air suspension,150mm,Manual,Thru-axle 15*110 | ||
| Head Sets | Alu alloy CNC with sealed Bearings 52*52mm | |||
| Derailleur Lever | SHIMANO DEORE/M6100-12S | |||
| Rear Derailleur | SHIMANO DEORE/M6100-12S | |||
| Cranksets | Matching with Mid Motor, 38T | |||
| Cassettes | SUNSHINE-12S,11-50T | |||
| Chain | SUMC-12S | |||
| Brake | TEKTRO-M535, 4-piston hydraulic disc, 203/203mm | |||
| Hub | RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost | |||
| Rim | RS, Alu alloy with Double-wall&Rivets, W25×H21mm | |||
| Spoke | SHUNJIU, Circular 14G | |||
| Tire | MAXXIS, 29/27.5×2.25" | |||
| Grips | Circular 22.2×120mm, PU leather&locking Ring | |||
| Saddle | RS, Comfortable and Thickened for MTB | |||
| Pedals | RS, Alu alloy CNC with Bearings for MTB | |||
| Motor System | Bafang Mid, M510, 36V250W (48V250W) | Bafang Mid, M560, 48V500W | Bafang Mid, M510, 36V250W (48V250W) | Bafang Mid, M560, 48V500W |
| Max Torque | 95 N.m (Peak 130N.m) | 130 N.m (Peak 150N.m) | 95 N.m (Peak 130N.m) | 130 N.m (Peak 150N.m) |
| Speed Limit | 25KMh Default (max 45KMh) | 25KMh Default (max 45KMh) | 25KMh Default (max 45KMh) | 25KMh Default (max 45KMh) |
| Pedal Sensor | Torque+Speed(cadence) | Torque+Speed(cadence) | Torque+Speed(cadence) | Torque+Speed(cadence) |
| Battery | Samsung 21700 Li-ion, 720Wh,36V20A(48V15A) | Samsung 21700 Li-ion, 720Wh, 48V15A | Samsung 21700 Li-ion, 720Wh,36V20A(48V15A) | Samsung 21700 Li-ion, 720Wh, 48V15A |
| Endurance | Max 120-140KM (pedal assist) | Max 110-130KM (pedal assist) | Max 120-140KM (pedal assist) | Max 110-130KM (pedal assist) |
| Charging Time | 6-7 Hours | 6-7 Hours | 6-7 Hours | 6-7 Hours |
| Charger | 3A, DC2.1 | 3A, DC2.1 | 3A, DC2.1 | 3A, DC2.1 |
| HMI | Bafang-C245, LCD digital | Bafang-C245, LCD digital | Bafang-C245, LCD digital | Bafang-C245, LCD digital |
| Waterproof | IP X6 | IP X6 | IP X6 | IP X6 |
| Max Load | 130 KG | 130 KG | 130 KG | 130 KG |
