| Bike Model |
EM5 -2rd |
| ConfRev |
M6100/12S+M510+36V20A (48V15A)
|
M6100/12S+M560+48V15A |
Wheeltop 12S+M560+48V15A, HIGH
|
| Frame Size |
29(27.5)×14" / 16" / 18" |

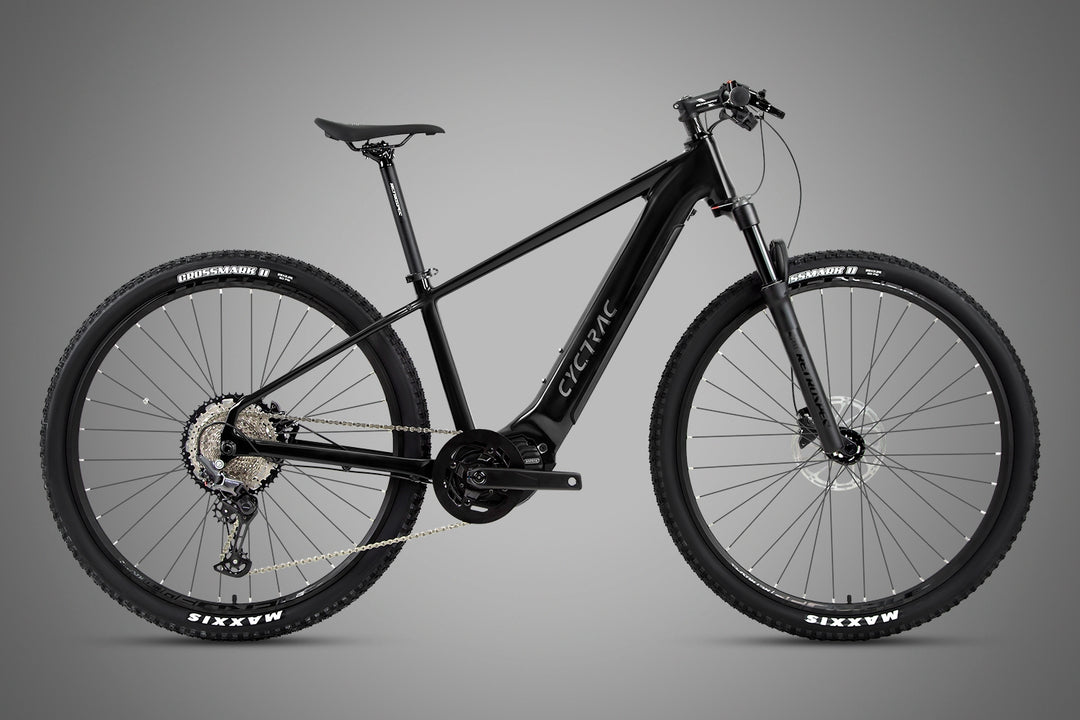

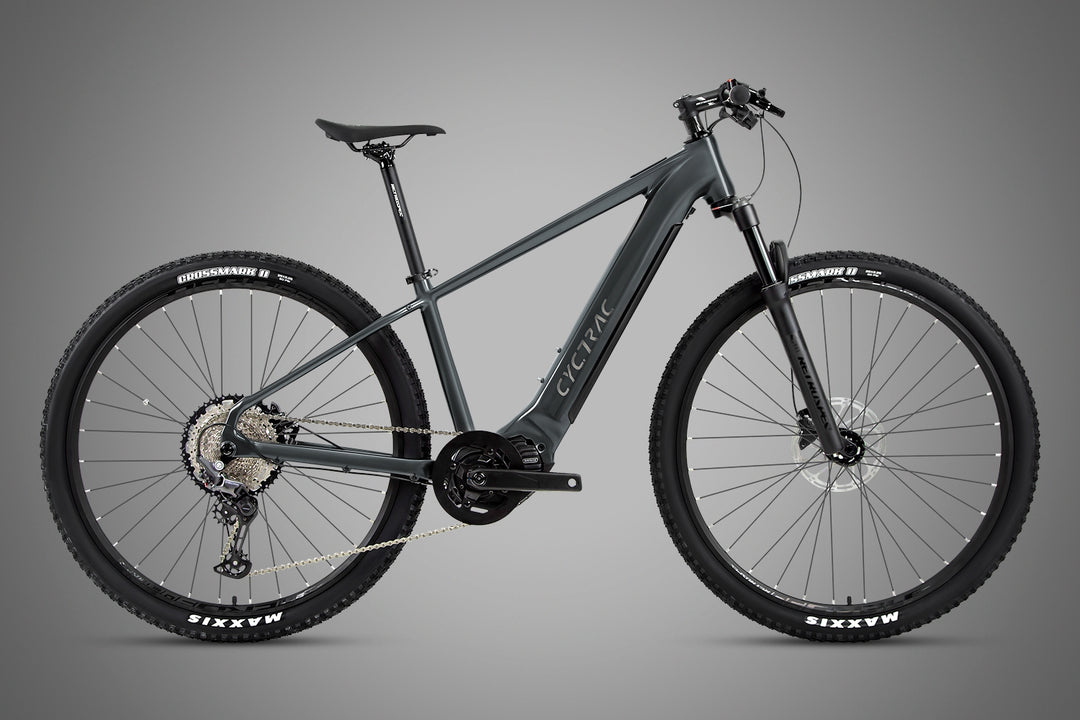

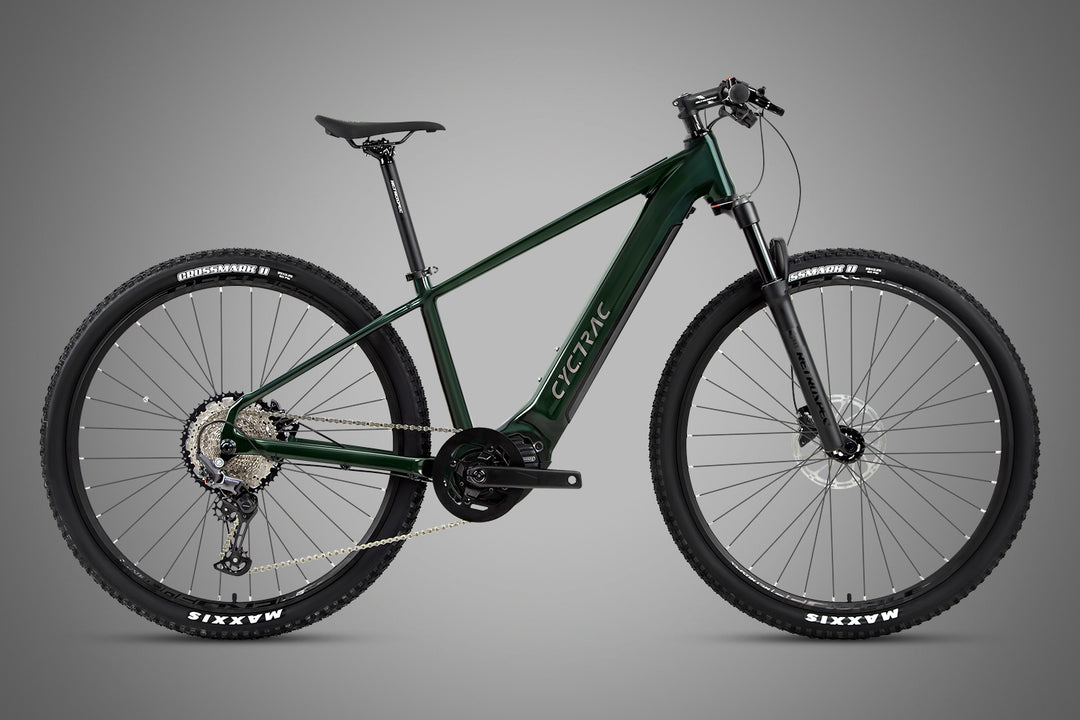

| Bike Color |
Black / DarkGray / DarkGreen |
| Net Weight |
22.3KG |
22.7KG |
22.9KG |
| Frame |
CYCTRAC-EM5, Alu alloy AL7005,Flat weld&Smooth,Inner cables, Thru-axle12*148 Boost, UDH tail hook |
| Handelbar Sets |
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80mm,Seat post 31.6×350mm,Clamps 34.9mm QR |
| Fork |
RS, MgAl alloy,Air, Remote,Thru-axle 15*110 |
RS, MgAl alloy,Air, Remote,Thru-axle 15*110 |
ROCKSHOX-JUDYS, Air,Remote,Thru-axle 15*110
|
| Head Sets |
Alu alloy CNC with sealed Bearings 52*52mm |
| Derailleur Lever |
SHIMANO DEORE/M6100-12S |
SHIMANO DEORE/M6100-12S |
Wheeltop EDS OX-12S wireless |
| Rear Derailleur |
SHIMANO DEORE/M6100-12S |
SHIMANO DEORE/M6100-12S |
Wheeltop EDS OX-12S wireless |
| Cranksets |
Matching with Mid Motor, 38T |
Matching with Mid Motor, 38T |
Matching with Mid Motor, 38T |
| Cassettes |
SUNSHINE-12S,11-50T |
SUNSHINE-12S,11-50T |
SUNSHINE-12S,11-50T |
| Chain |
SUMC-12S |
SUMC-12S |
SUMC-12S |
| Brake |
SHIMANO MT200 hydraulic disc brake,180/180mm |
| Hub |
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
|
| Rim |
RS, Alu alloy with Double-wall&Rivets, W25×H21mm |
| Spoke |
SHUNJIU, Circular 14G |
| Tire |
MAXXIS, 29/27.5×2.25" |
| Grips |
Circular 22.2×120mm, PU leather&locking Ring |
| Saddle |
RS, Comfortable and Thickened for MTB |
| Pedals |
RS, Alu alloy CNC with Bearings for MTB |
| Motor System |
Bafang Mid, M510, 36V250W (48V250W)
|
Bafang Mid, M560, 48V500W |
Bafang Mid, M560, 48V500W |
| Max Torque |
95 N.m (Peak 130N.m) |
130 N.m (Peak 150N.m) |
130 N.m (Peak 150N.m) |
| Speed Limit |
25KMh Default (max 45KMh) |
25KMh Default (max 45KMh) |
25KMh Default (max 45KMh) |
| Pedal Sensor |
Torque+Speed(cadence) |
Torque+Speed(cadence) |
Torque+Speed(cadence) |
| Battery |
Samsung 21700 Li-ion,720Wh,36V20A(48V15A)
|
Samsung 21700 Li-ion, 720Wh, 48V15A
|
Samsung 21700 Li-ion, 720Wh, 48V15A
|
| Endurance |
Max 130-150KM (pedal assist) |
Max 120-140KM (pedal assist) |
Max 120-140KM (pedal assist) |
| Charging Time |
6-7 Hours |
6-7 Hours |
6-7 Hours |
| Charger |
3A, DC2.1 |
3A, DC2.1 |
3A, DC2.1 |
| HMI |
Bafang-C030, LCD digital (Built in Top tube) |
Bafang-C030, LCD digital (Built in Top tube) |
Bafang-C030, LCD digital (Built in Top tube) |
| Waterproof |
IP X6 |
IP X6 |
IP X6 |
| Max Load |
130 KG |
130 KG |
130 KG |
