| Bike Model | EM8 | ||
| ConfRev | M6100/12S+M510+36V16A (48V13A) | M6100/12S+M560+48V13A | Wheeltop 12S+M560+48V13A, HIGH |
| Frame Size | 29(27.5)×17" / 19" | ||

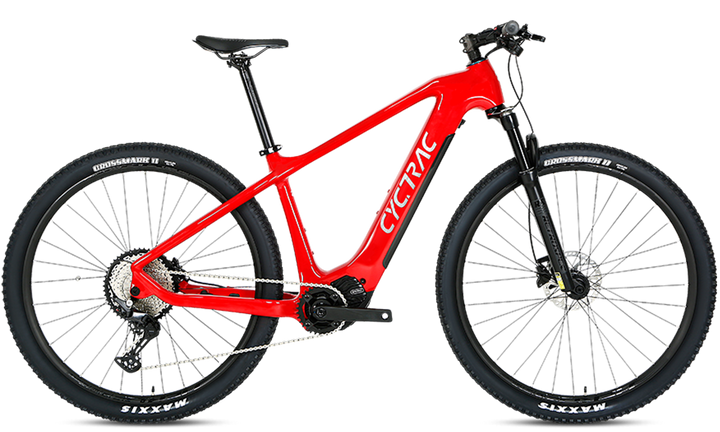

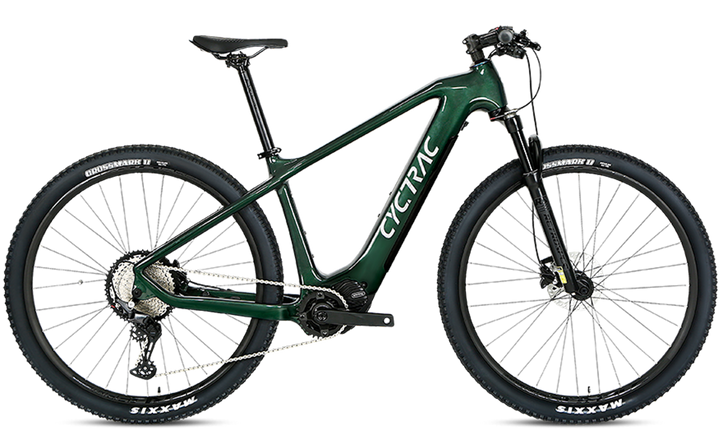

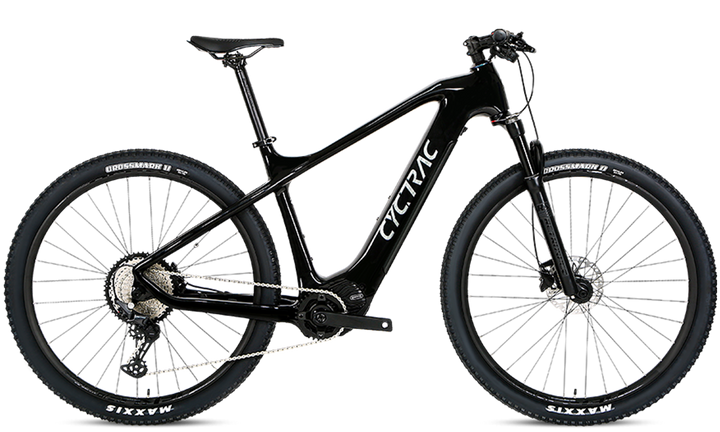

| Bike Color | DarkGreen / Black / Red | ||
| Net Weight | 20.5KG | 20.9KG | 21.1KG |
| Frame | CYCTRAC, EM8, High modulus Carbon fiber, XC, Inner cables, Thru-axle12*148 Boost | ||
| Handelbar Sets | RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80mm,Seat post 31.6×350mm,Clamps 34.9mm QR | ||
| Fork | RS, MgAl alloy,Air, Remote,Thru-axle 15*110 | RS, MgAl alloy,Air, Remote,Thru-axle 15*110 | ROCKSHOX-JUDYS, Air,Remote,Thru-axle 15*110 |
| Head Sets | Alu alloy CNC with sealed Bearings 52*52mm | ||
| Derailleur Lever | SHIMANO DEORE/M6100-12S | SHIMANO DEORE/M6100-12S | Wheeltop EDS OX-12S wireless |
| Rear Derailleur | SHIMANO DEORE/M6100-12S | SHIMANO DEORE/M6100-12S | Wheeltop EDS OX-12S wireless |
| Cranksets | Matching with Mid Motor, 38T | Matching with Mid Motor, 38T | Matching with Mid Motor, 38T |
| Cassettes | SUNSHINE-12S,11-50T | SUNSHINE-12S,11-50T | SUNSHINE-12S,11-50T |
| Chain | SUMC-12S | SUMC-12S | SUMC-12S |
| Brake | SHIMANO MT200 hydraulic disc brake,180/180mm | ||
| Hub | RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost | ||
| Rim | RS, Alu alloy with Double-wall&Rivets, W25×H21mm | ||
| Spoke | SHUNJIU, Circular 14G | ||
| Tire | MAXXIS, 29/27.5×2.25" | ||
| Grips | Circular 22.2×120mm, PU leather&locking Ring | ||
| Saddle | RS, Comfortable and Thickened for MTB | ||
| Pedals | RS, Alu alloy CNC with Bearings for MTB | ||
| Motor System | Bafang Mid, M510, 36V250W (48V250W) | Bafang Mid, M560, 48V500W | Bafang Mid, M560, 48V500W |
| Max Torque | 95 N.m (Peak 130N.m) | 130 N.m (Peak 150N.m) | 130 N.m (Peak 150N.m) |
| Speed Limit | 25KMh Default (max 45KMh) | 25KMh Default (max 45KMh) | 25KMh Default (max 45KMh) |
| Pedal Sensor | Torque+Speed(cadence) | Torque+Speed(cadence) | Torque+Speed(cadence) |
| Battery | 18650 Li-ion 576Wh-36V16A (48V13A) | 18650 Li-ion 624Wh, 48V13A | 18650 Li-ion 624Wh, 48V13A |
| Endurance | Max 100-120KM (pedal assist) | Max 100-120KM (pedal assist) | Max 100-120KM (pedal assist) |
| Charging Time | 5-6 Hours | 5-6 Hours | 5-6 Hours |
| Charger | 3A, DC2.1 | 3A, DC2.1 | 3A, DC2.1 |
| HMI | Bafang-C245, LCD digital | Bafang-C245, LCD digital | Bafang-C245, LCD digital |
| Waterproof | IP X6 | IP X6 | IP X6 |
| Max Load | 130 KG | 130 KG | 130 KG |
