Name: CYCTRAC EC1 Electric Mountain Bike – Bafang M510 720Wh eMTB
Brand: CYCTRAC
SKU: CYCTRAC-EC1-RS-MB-N
Price: 1353.0 USD
Availability: InStock

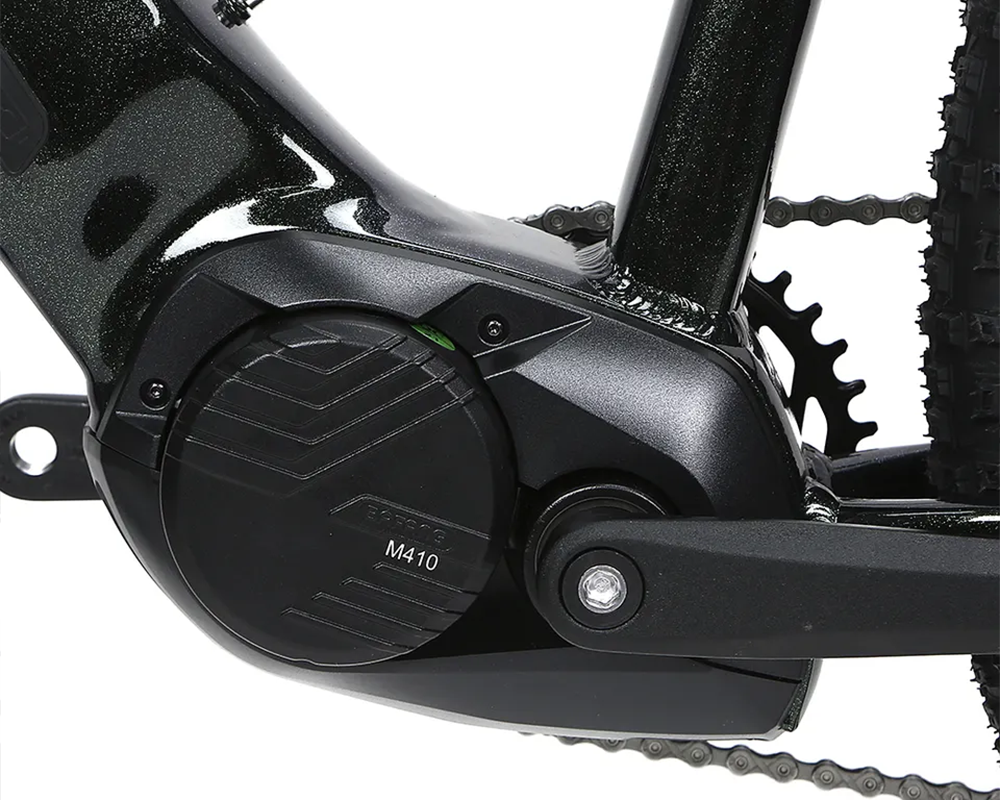

CYCTRAC EC1 eMTB with Bafang M510 mid-drive, component detail

CYCTRAC EC1 eMTB with 720Wh Samsung battery, component detail

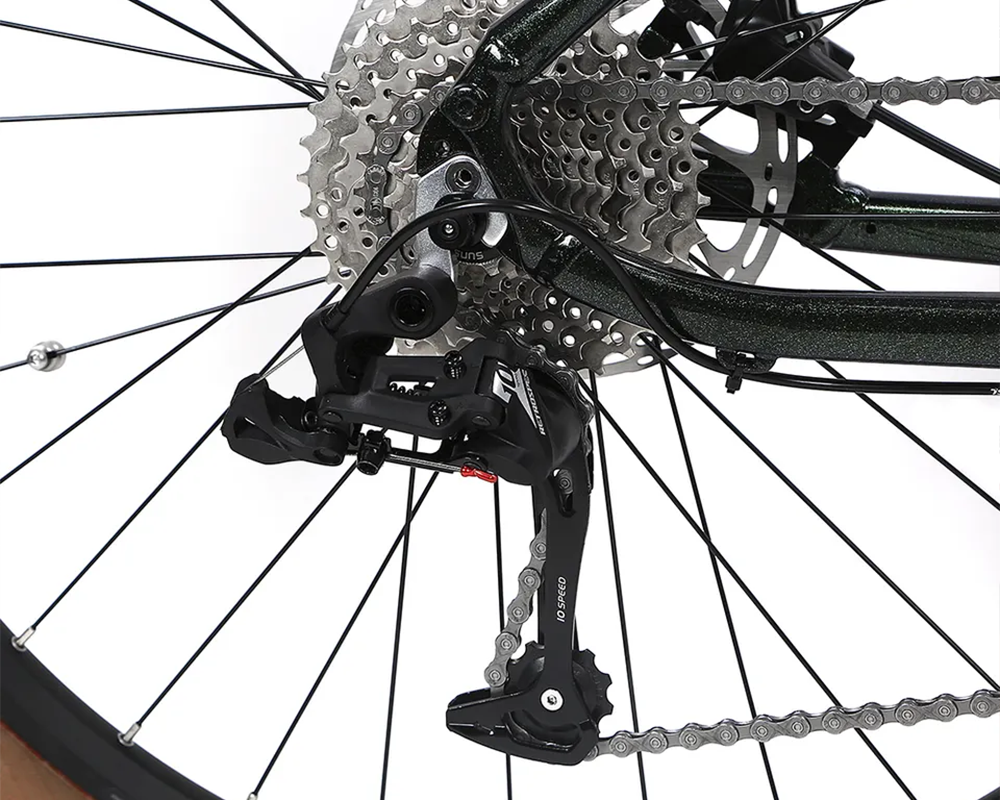

CYCTRAC EC1 eMTB frame and drivetrain detail

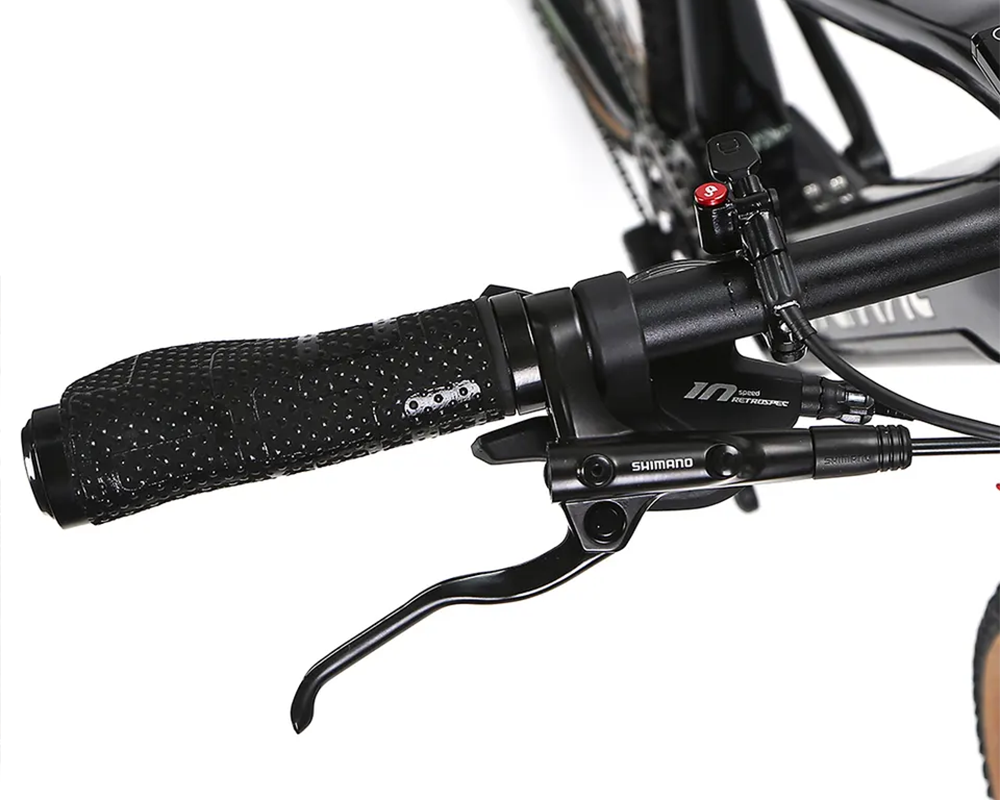

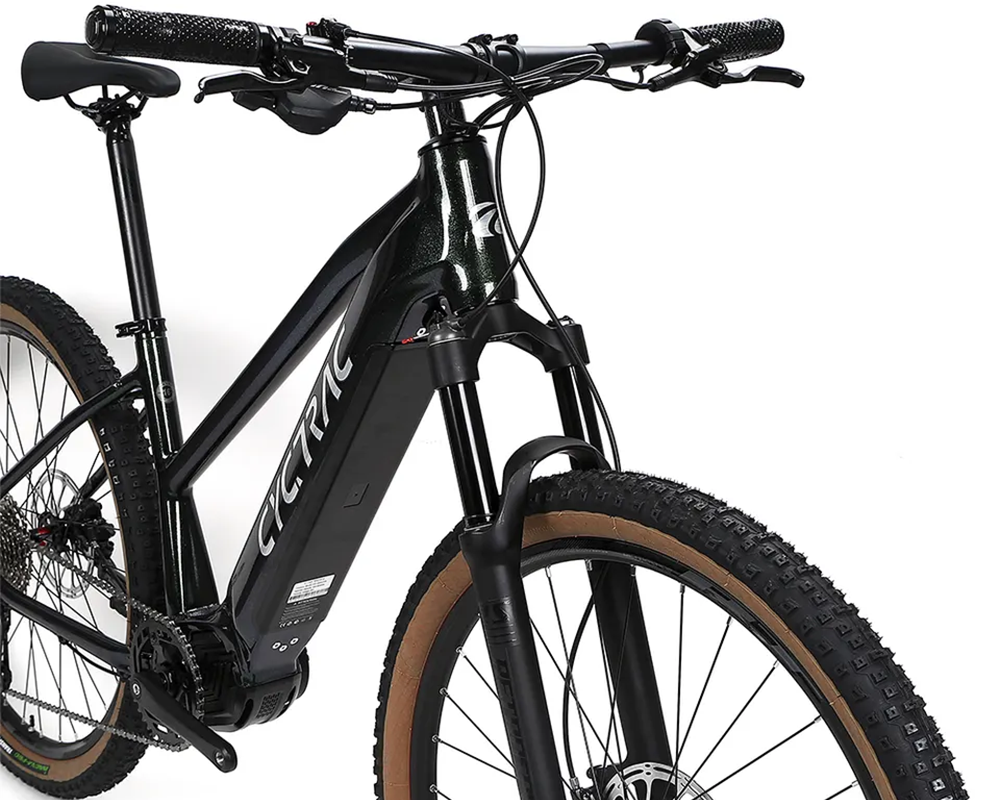

CYCTRAC EC1 eMTB cockpit and Bafang C080 LCD display detail

$1,353.00

System Configuration

RS (LTWOO) V5010-10S

Wheeltop EDS OX-12S Wireless

Color

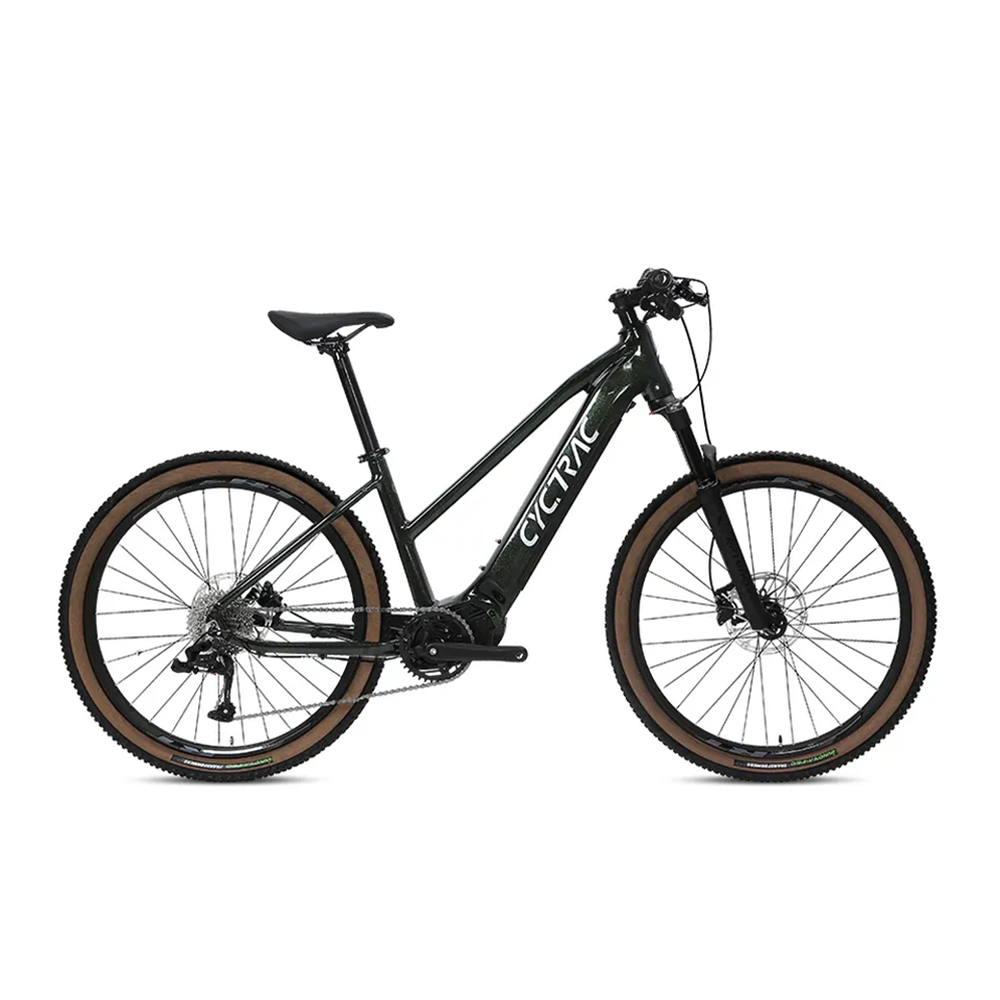

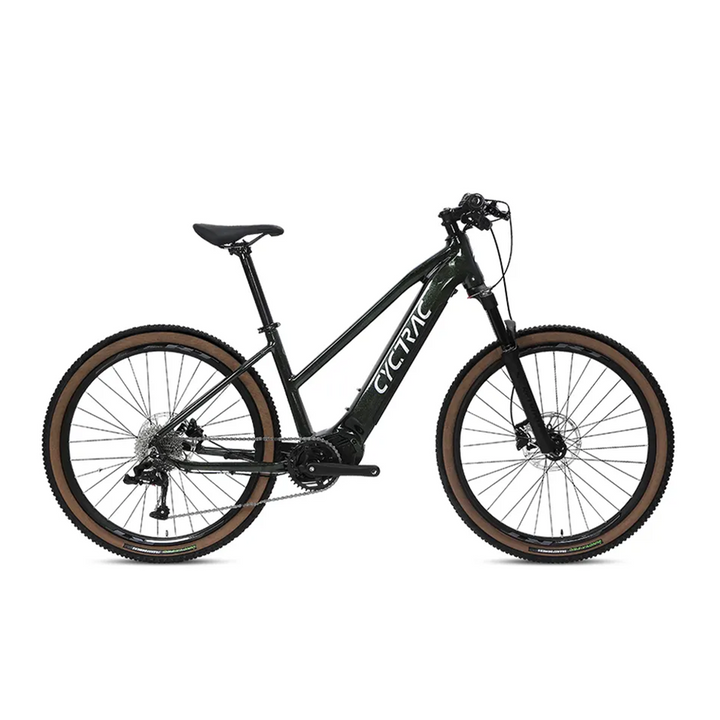

Matte Black

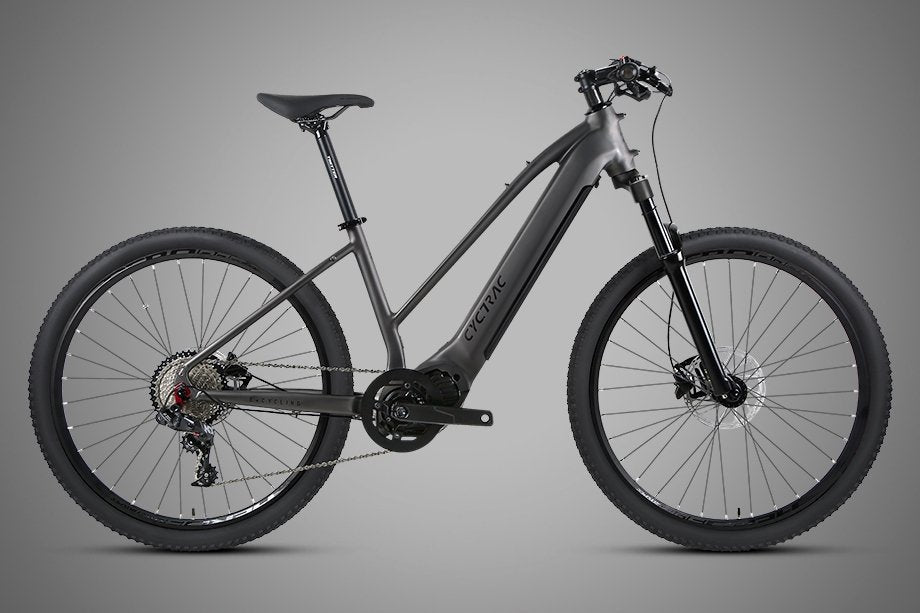

Matte Dark Grey

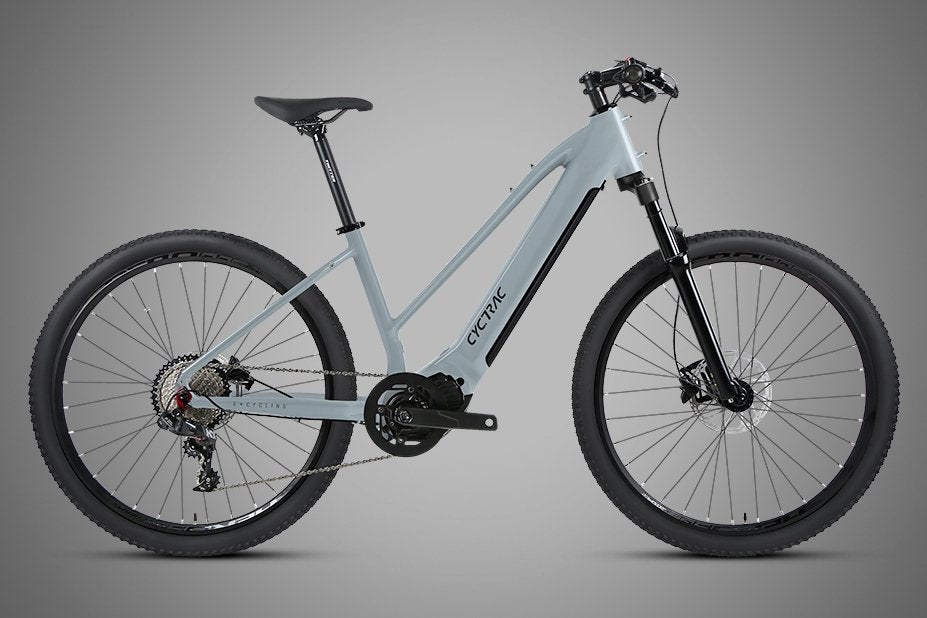

Cement Grey

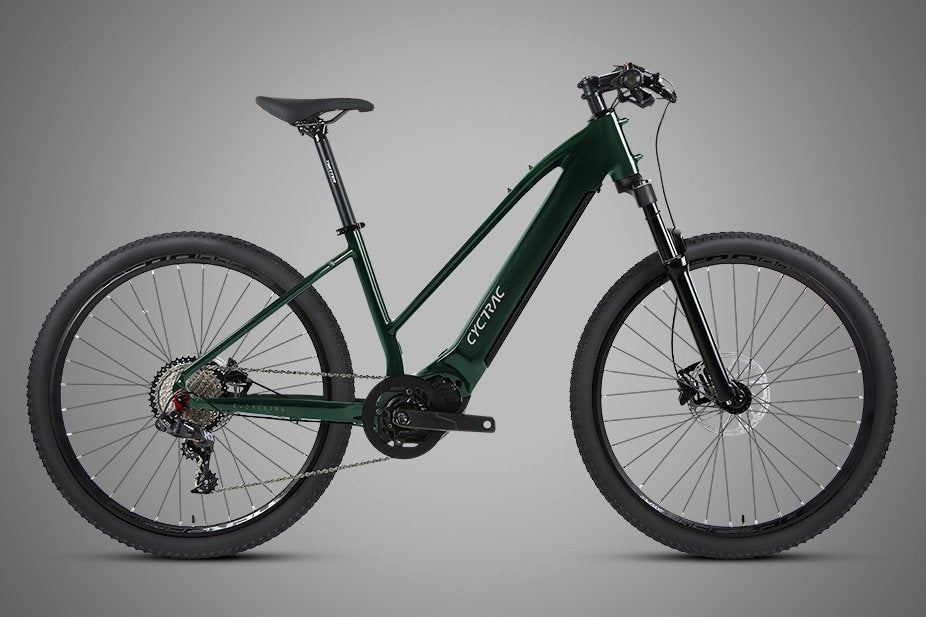

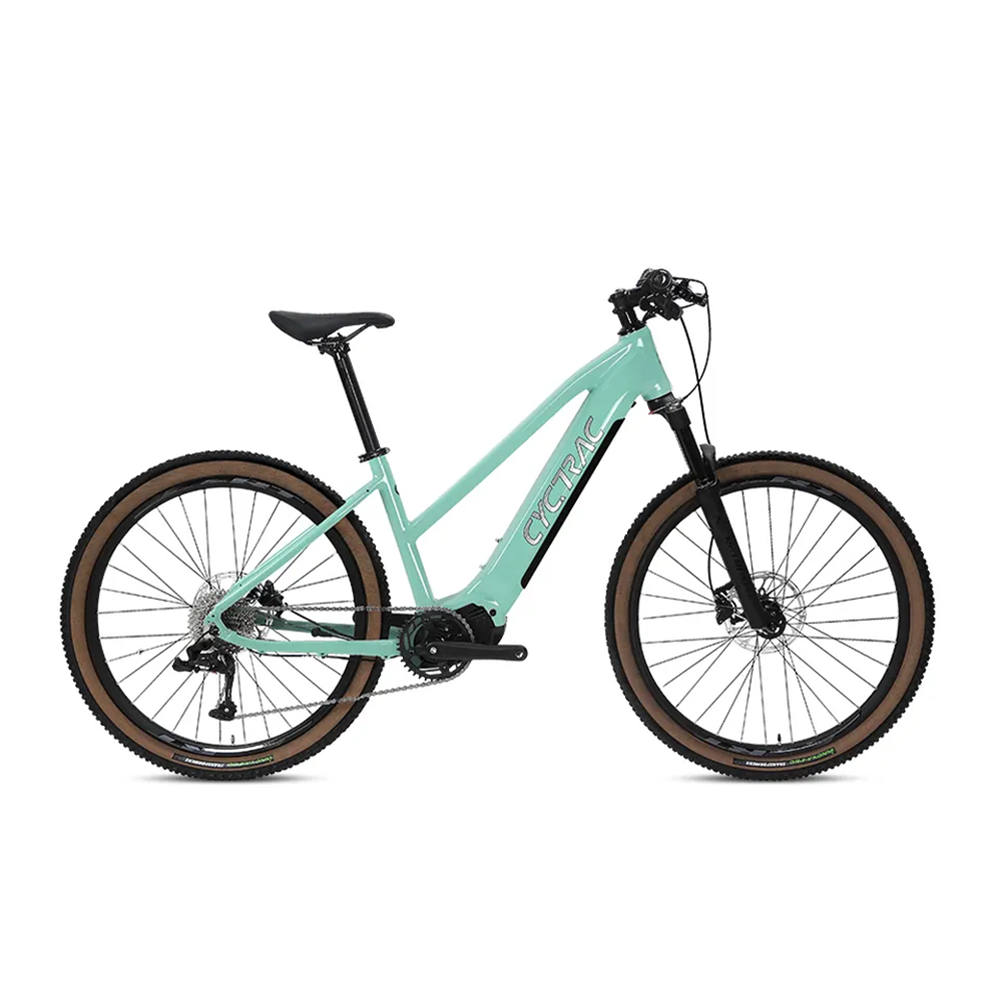

Dark Green

Bicycle Features

Normal

Remap (45 km/h)

The CYCTRAC EC1 is an aluminium electric mountain bike built to flatten climbs and stretch out every ride. A Bafang M510 mid-drive delivers 110 Nm of torque with 250W nominal and 790W peak output, while a frame-integrated 720Wh Samsung battery covers 130–150 km of pedal-assisted range. It is the most accessible mid-drive eMTB in the CYCTRAC line, and the easiest one to live with day to day.

Why You'll Love This Electric Mountain Bike

Real mid-drive torque: Bafang M510, 48V 250W (peak 790W), 110 Nm, with torque and cadence sensing so assist arrives naturally with each pedal stroke.
Range that lasts the day: 720Wh Samsung 21700 pack, frame-integrated and removable with a key, recharging in 5–6 hours.
Two drivetrain builds: mechanical LTWOO V5010 10-speed (11–36T) for value, or Wheeltop EDS OX-12S wireless electronic 12-speed (11–50T) for a cable-free cockpit and a wider climbing range.
Trail-ready hardware: SHIMANO MT200 hydraulic disc brakes on 180/180 mm rotors, RS coil fork with manual lockout, and 27.5 × 2.4" CST tyres on double-wall rims.
Four finishes: Matte Black, Matte Dark Grey, Cement Grey and Dark Green.

Specifications

Motor: Bafang mid-drive M510, 48V 250W, peak 790W, max torque 110 Nm
Battery: Samsung 21700 Li-ion, 720Wh, 48V 15A, frame-integrated and removable with key
Range: up to 130–150 km in pedal assist
Speed limit: 25 km/h default, up to 45 km/h with the Remap option
Sensor: torque + cadence, throttle available
Display: Bafang-C080 LCD with USB / Type-C output, IP X6 waterproof
Charging: 3A DC2.1 charger, 5–6 hours
Frame: CYCTRAC EC1, AL6061-T6 aluminium alloy, flat weld, internal cable routing
Fork: RS aluminium alloy, coil suspension, manual lockout
Drivetrain: LTWOO V5010-10S with SUNSHINE 11–36T, or Wheeltop EDS OX-12S wireless with SUNSHINE 11–50T
Crankset: mid-motor matched, 38T

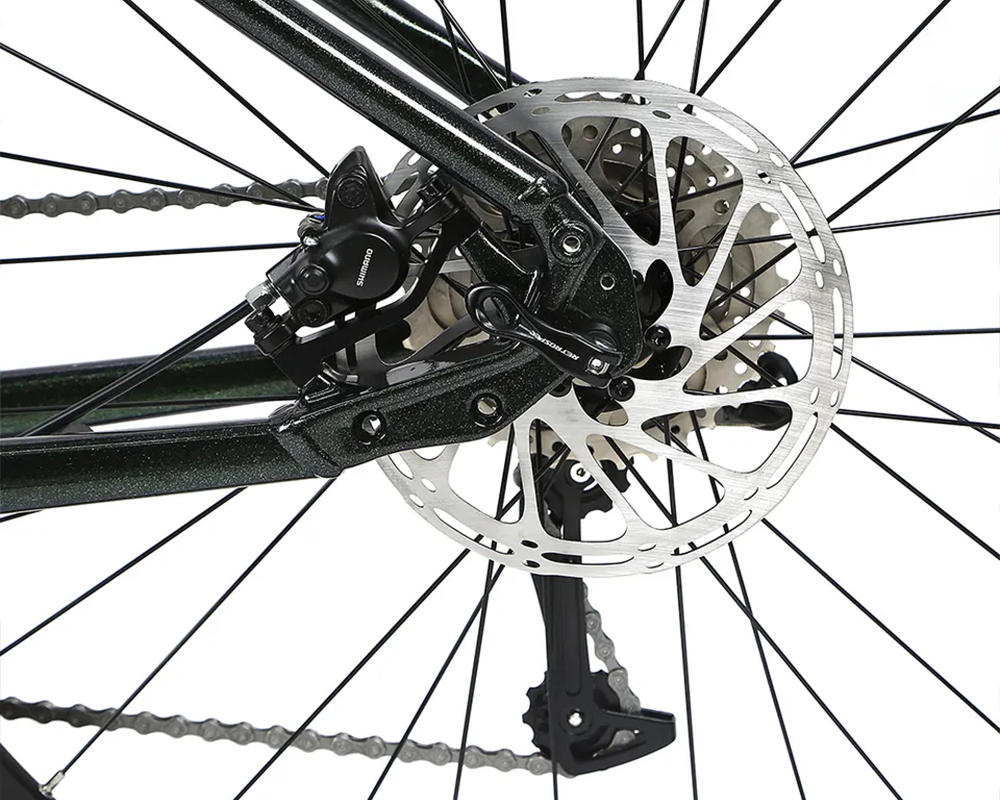

Brakes: SHIMANO MT200 hydraulic disc, 180/180 mm
Wheels: RS alloy double-wall rims W30×H21 mm, 32H, sealed-bearing hubs
Tyres: CST 27.5 × 2.4"
Cockpit: handlebar 31.8×720 mm, stem 60 mm, seat post 31.6×350 mm
Frame size: 27.5 × 16"
Net weight: 22.1 kg (LTWOO) / 22.3 kg (Wheeltop) · Max load: 160 kg

What's in the Box

Factory pre-assembled CYCTRAC EC1 electric mountain bike
Removable 720Wh Samsung battery plus lock key
3A DC2.1 battery charger
RS aluminium alloy skid-resistant MTB pedals
Official manual and warranty card

Ordered and supported locally: 28goods.com is based in Hong Kong, so sizing questions, delivery and after-sales support on your EC1 are handled by a local team.
