Name: Maxfind M5 Conversion Kit
Brand: Maxfind
Price: 493.0 USD
Availability: InStock

$595.00 $493.00 Save 17%

Range Options

17Miles / 28Km (Special Offer)

21Miles / 35Km (Standard Range)

42Miles / 70Km (Long Range)

64Miles / 105Km (Super Range)

The Maxfind M5 Conversion Kit Has An Impressive Stamina!

BEST HUB MOTOR DRIVE KIT 2023

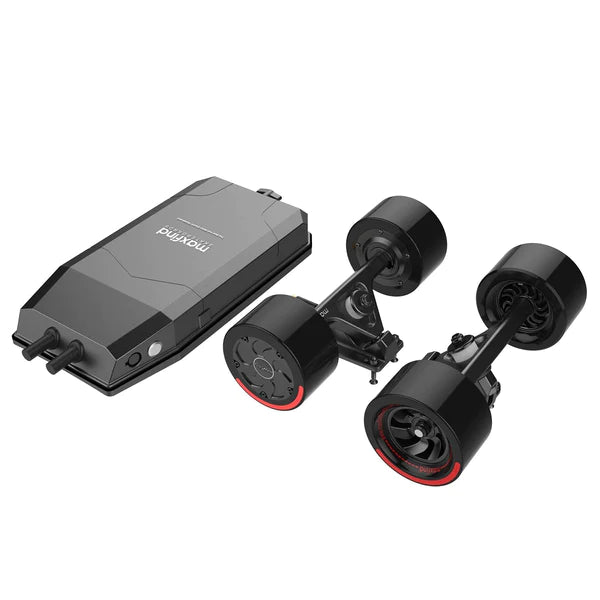

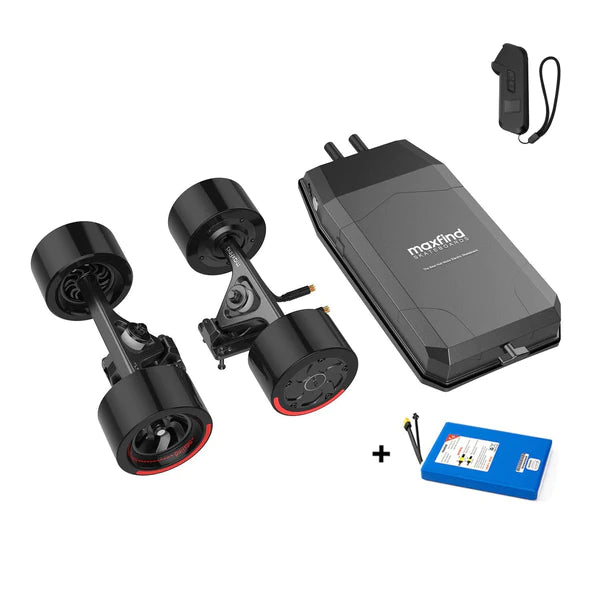

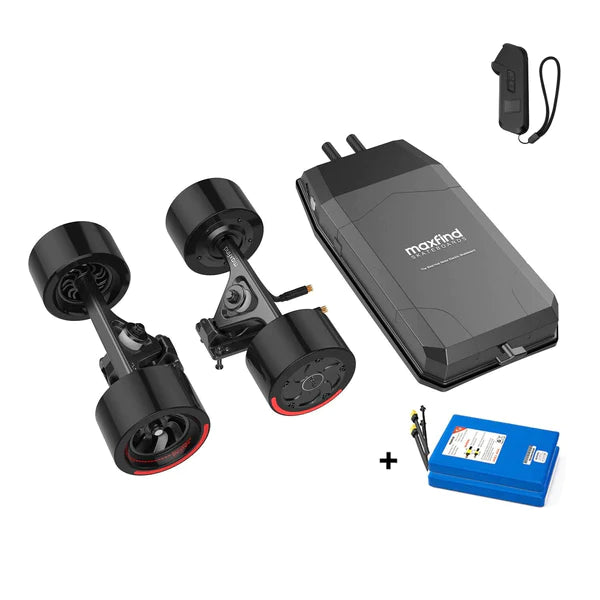

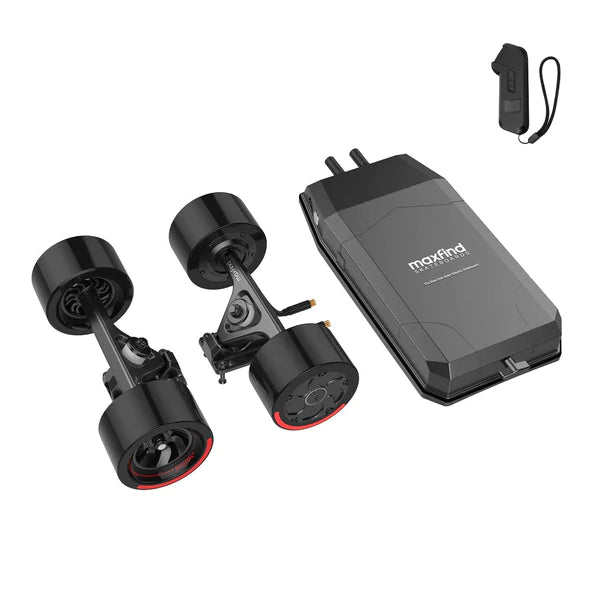

Maxfind M5 Electric Skateboard Conversion Kit uses the core technology of the fast-swap battery design and is customized as a DIY Kit that can be retrofitted. This is the best choice for people who like personality. It can adapt to any wooden board and make your style unique!

maxfind m5 electric skateboard kit

ESC IPX7, Hub Motor IPX5, Battery IPX5

ELECTRIFY ANY SKATEBOARD

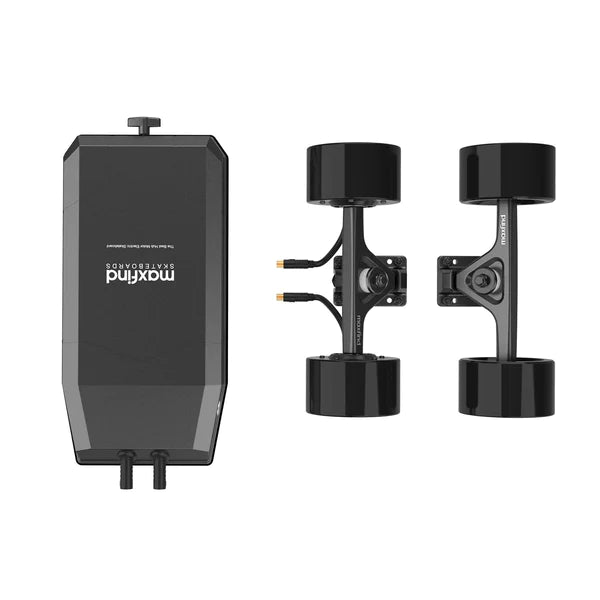

Like a normal truck, the Maxfind M5 Drive Kit can be mounted to any skateboard. Giving you the freedom to choose your favorite deck and recycle it into a full on riding machine. With its compact size it also qualifies as a perfect travel mate.

Hobbywing 2.0 Foc Esc

SMART BRAKE, SAFE AND SECURE

Adjust the power output precisely to improve the smoothness of acceleration and braking. Professional-grade power adjustment and the Hobbywing motor work in unison to improve energy efficiency significantly. Bring you a more enjoyable and comfortable riding experience.

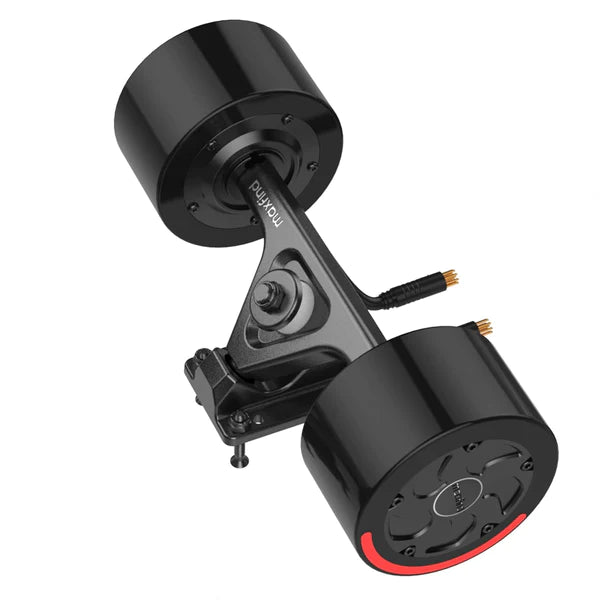

M5 750W*2 HUB MOTORS

Equipped with the 750W*2 motors which have more torque with smaller input current. The internal structure of the motor has been optimized, meaning the PU sleeves are easier to swap and less noise issues. And the exclusive customized motor caps make the motors look more advanced and more beautiful.

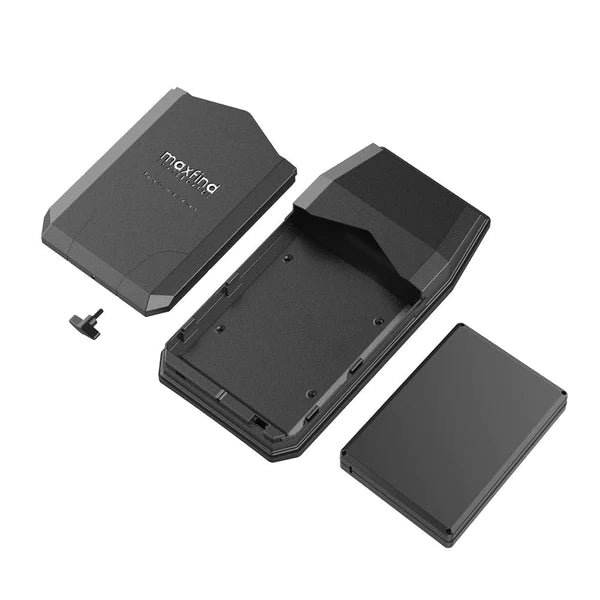

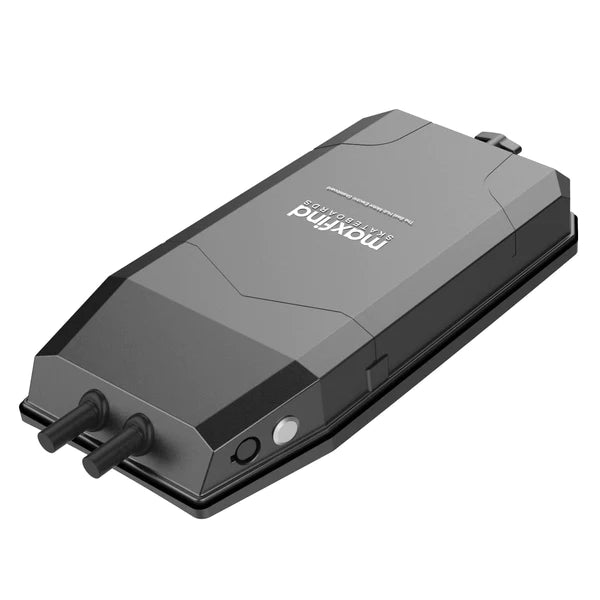

FAST-SWAP BATTERY DESIGN

Maxfind has created the only device on the market that can quickly replace the battery. You can choose the battery combination you want according to the mileage requirements. You can replace the battery in just 10 seconds and start a new riding journey immediately!

MAX II 10.6'' 45° TRUCK

The new Max II truck uses proprietary forging and CNC milling manufacturing processes to improve stability at high speeds. The distance between the front and rear trucks is reduced, providing unrivaled flexibility.

maxfind m5 electric skateboard kit

OLED DISPLAY REMOTE CONTROL

Ergonomic design and four adjustment modes allow you to quickly adapt to different environments. High-resolution OLED screen intelligently reads a wealth of riding data.

Range	21 Miles / 35 Km
Speed	25 Mph / 40 Kph
Hill Climbing	30%
Motor Power	750W*2
Motor Torque	5.2 N.m*2
Fast-Swap Battery	√
Battery	SAMSUNG 10S2P, 6.4Ah, 230Wh, 36V
Esc	HOBBYWING 2.0
Trucks	Max II 45° Truck (10.6 inch / 270 mm CNC Precision Forging)
Braking System	Electronic Regenerative Braking
Waterproof Rating	IPX5
Wheels	96 mm / 3.8 Inch
Weight	13 Lbs / 5.9 Kg
Charging Time	2 Hours With 2A Fast Charger
